Parker 14A1C00002 Frl Unit 20 Scfm 150 Psi 1/4 Npt

Product Description

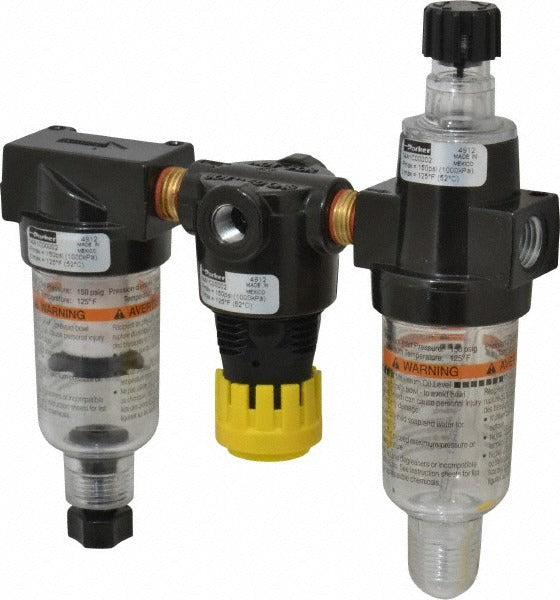

The PARKER 14A1C00002 is a miniature 3-piece filter-regulator-lubricator (FRL) combination unit designed for compressed air line conditioning in pneumatic systems. It integrates filtration, pressure regulation, and lubrication into a single inline assembly, reducing installation footprint and plumbing connections. The unit handles up to 20 SCFM flow with a maximum supply pressure of 150 psi, making it well-suited for light industrial and automation applications. Filtration is rated at 5 microns to protect downstream components from particulate contamination. A polycarbonate bowl with manual drain gives technicians direct visibility of the condensate level. HVAC controls technicians, pneumatic system integrators, and industrial maintenance professionals install this unit.

This FRL unit is intended for compressed air systems requiring inline air preparation at 1/4 NPT ported connections. Its miniature body type makes it appropriate for space-constrained control panels, small pneumatic actuator circuits, and light-duty automation equipment. The 1/4 NPT end connections accommodate standard quarter-inch compressed air plumbing. At 1.00 oz lubricator bowl capacity, the unit is sized for lower-flow circuits where moderate oil misting is sufficient to protect downstream pneumatic actuators and valves. The manual drain design requires periodic operator intervention to remove accumulated moisture from the filter bowl.

Key Features

• 3-piece integrated FRL assembly — filter, regulator, and lubricator in one unit
• 20 SCFM maximum flow rate at 1/4 NPT port size
• 150 psi maximum supply pressure rating
• 5-micron filtration removes particulate from compressed air supply
• Polycarbonate bowl provides visual condensate level inspection
• Manual drain for controlled condensate removal
• 1.00 oz lubricator bowl capacity for downstream actuator protection

Compatibility

Designed as an OEM-style inline air preparation unit for compressed air systems with 1/4 NPT ported plumbing in light industrial and automation applications.

Installation Notes

Installation is typically performed by a pneumatic systems technician or industrial maintenance professional. Depressurize and lock out the compressed air supply completely before installing or servicing this unit. Observe the directional airflow arrow on the body to ensure correct upstream-to-downstream orientation. The polycarbonate bowl should not be exposed to solvent-based cleaners or aerosols, as chemical contact can cause bowl crazing or failure.
