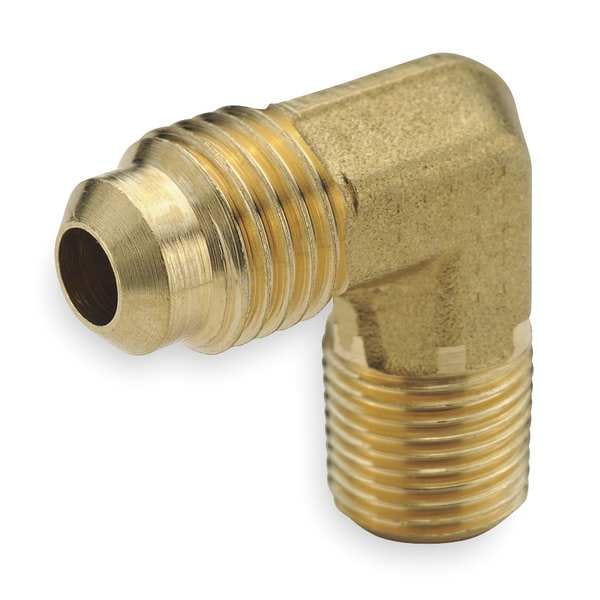

Parker 149F-8-4 Male Elbow 149F-249F

Product Description

The Parker 149F-8-4 is a male elbow fitting designed for applications requiring a 45-degree flare. This fitting complies with the SAE J512 and J513 standards and is compatible with copper, brass, aluminum, or steel tubing that can be flared to 45 degrees.

• Meets functional requirements of SAE J512 and J513
• Rated for operating temperatures between minus sixty-five degrees Fahrenheit to plus two hundred fifty degrees Fahrenheit
• Pressure rating of seven hundred fifty PSI

Product Highlights

This elbow fitting provides reliable connections in fluid systems and ensures durability and performance in various conditions.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 149F-8-4

Technical Specifications

• Outer Diameter 1: 1/2 Inch
• Thread 1: 3/4-16 UN/UNF
• Thread 2: 1/4 NPT
• Material: Brass
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Elbow 90 Degrees
• Body Shape: Forged
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 750 PSI
• SAE Compliance: J512 and J513
