Parker 149F-8-12 Male Elbow 249F 45 Degree Flare Replacement MPN

Product Description

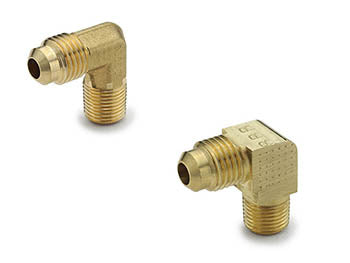

Parker 149F-8-12 is a male elbow fitting designed for 45-degree flare applications. This product meets the standards of SAE J512 and J513. It is suitable for use with copper, brass, aluminum, or steel tubing that can be flared to 45 degrees.

• Compatible with multiple types of tubing
• Meets SAE J512 and J513 standards
• Designed for a pressure rating up to 750 PSI

Product Highlights

The fitting features a forged body shape and is capable of operating in temperatures ranging from -65 degrees Fahrenheit to +250 degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 149F-8-12

Technical Specifications

• Outer Diameter 1: 1/2 Inch
• Thread 1: 3/4-16 UN/UNF
• Thread 2: 3/4 NPT
• Material: Brass
• Series: 45 Degree Flare
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Elbow 90 Degree
• Operating Temperature: -65 degrees Fahrenheit to +250 degrees Fahrenheit
• Pressure Rating: 750 PSI
• SAE Compliance: J512 and J513
