Parker 149F-6-2 Male Elbow 149F-249F

Product Description

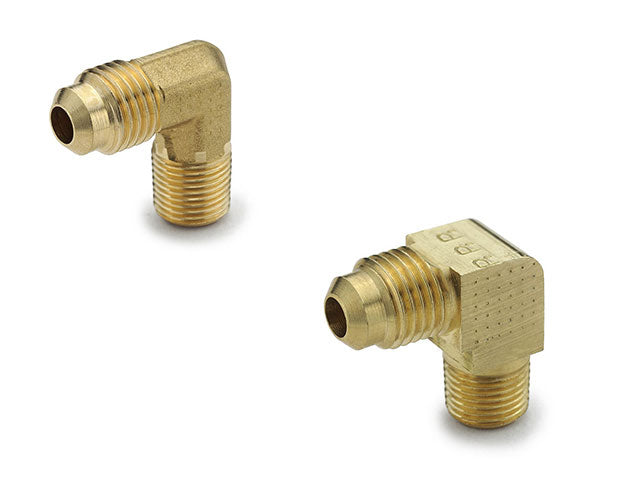

The Parker 149F-6-2 is a 45-degree flare brass male elbow designed for various piping applications. It meets the standards set by SAE J512 and J513 and is compatible with copper, brass, aluminum, and steel tubing that can be flared to 45 degrees. This fitting is ideal for connecting pipes at an angle in fluid systems.

• Compatible with SAE J512 and J513 standards
• Constructed from durable brass material
• Operating temperature range from -65 degrees Fahrenheit to +250 degrees Fahrenheit

Product Highlights

This male elbow allows for secure and efficient connections in plumbing and HVAC systems.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 149F-6-2

Technical Specifications

• Outer Diameter: 3/8 Inch
• Thread 1: 5/8-18 UN/UNF
• Thread 2: 1/8 NPT
• Material: Brass
• Series: 45 Degree Flare
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Elbow 90 Degree
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 1000 PSI
