PARKER 149020 PARKER Sporlan Evaporator Pressure Regulating Valve

Product Description

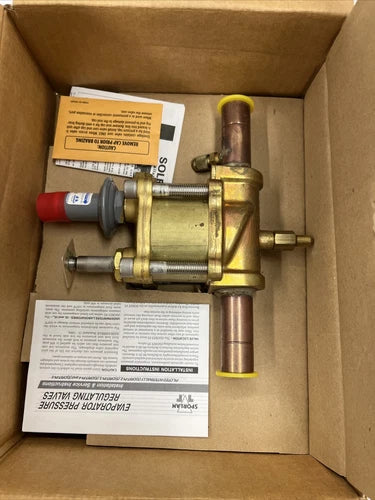

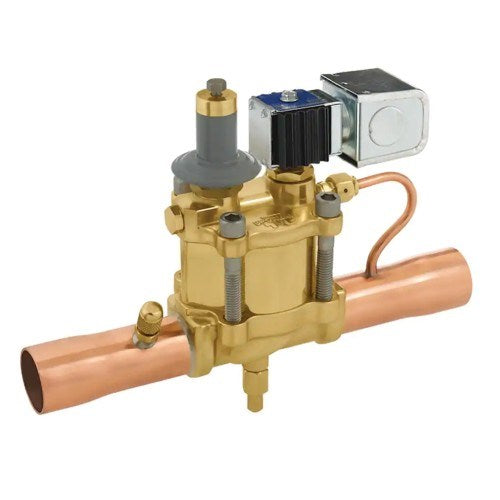

The PARKER Sporlan 149020 is an evaporator pressure regulating valve with a focus on maintaining optimal evaporator pressure and temperature control. It includes a half-inch port and seven-eighths inch ODF connections. This valve features internal piloting, a solenoid stop feature, and a built-in pressure tap for enhanced functionality.

• Port Size: 1/2 inch
• Pressure Range: 0 to 100 PSI
• Includes solenoid stop feature

Product Highlights

This evaporator pressure regulating valve is suitable for various applications in HVAC systems where precise pressure regulation is essential for system performance.

Product Information

Standard Information

• Brand: Sporlan
• Manufacturer: Parker Hannifin Corporation

Technical Specifications

• MPN: 149020
• Pressure Regulating Valve Type: Evaporator Pressure Regulating Valves
• Valve Body Type: SORIT-PI
• Port Size: 1/2 inch
• Pressure Range: 0 to 100 PSI
• Connection Size: 7/8 inch ODF
• Maximum Rated Pressure: 400 PSIG
• Minimum Fluid Temperature: -40 F
