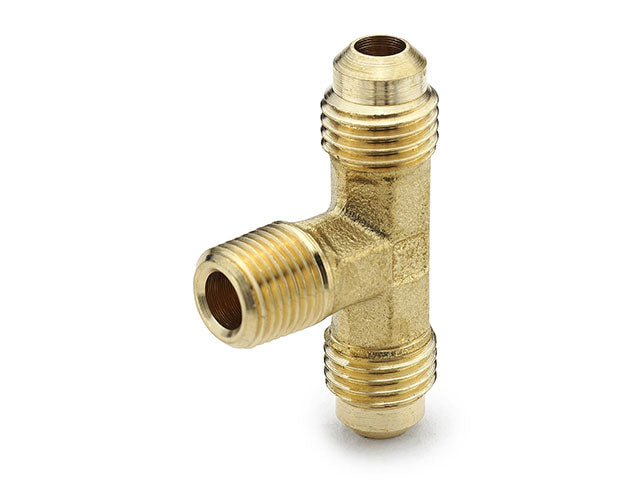

Parker 145F-8-6 Male Branch Tee 45 Degree Flare 1/2 Inch

Product Description

The Parker 145F-8-6 Male Branch Tee is a reliable connection fitting for fluid transfer systems. It meets SAE J512 and J513 standards, ensuring its suitability for various applications involving copper, brass, aluminum, or steel tubing.

• Meets stringent standards for quality and reliability.
• Compatible with common industry tubing materials.
• Designed for easy installation in HVAC and plumbing applications.

Product Highlights

The Male Branch Tee provides a 45-degree angled connection that simplifies installations.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 145F-8-6

Technical Specifications

• Outer Diameter 1: 1/2 Inch
• Outer Diameter 2: 1/2 Inch
• Thread 1: 3/4-16 UN/UNF
• Thread 2: 3/4-16 UN/UNF
• Thread 3: 3/8 NPT
• Material: Brass
• Series: 45 Degree Flare
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Branch Tee
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 750 PSI
• Parker Division: Fluid Systems Connector (Brass Products)
• SAE Compliance: J512 and J513
