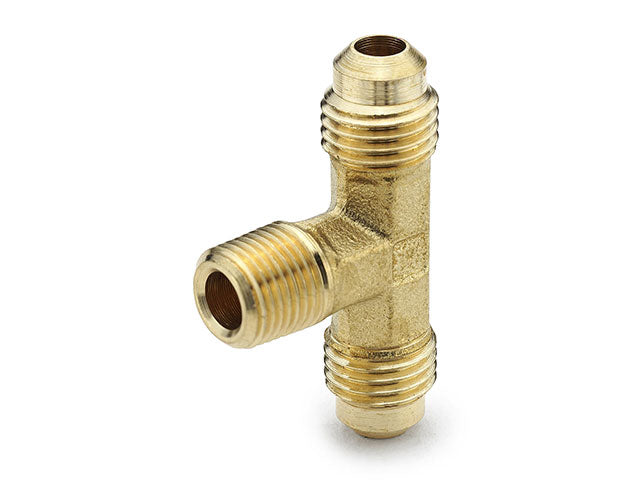

Parker 145F-4-2 Male Branch Tee 145F - Brass Fitting

Product Description

The Parker 145F-4-2 is a male branch tee fitting designed for 45-degree flare connections. It meets the specifications of SAE J512 and J513, ensuring it is a reliable choice for various plumbing tasks. This fitting is suitable for use with copper, brass, aluminum, or steel tubing.

• Compatible with copper, brass, aluminum, or steel tubing.
• Operates effectively within a temperature range of -65°F to +250°F.
• Pressure rating of 1400 PSI.

Product Highlights

The Parker 145F-4-2 male branch tee connects fluid lines securely. It is forged for strength and is easy to install.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 145F-4-2

Technical Specifications

• Outer Diameter 1: 1/4 Inch
• Outer Diameter 2: 1/4 Inch
• Thread 1: 7/16-20 UN/UNF
• Thread 2: 7/16-20 UN/UNF
• Thread 3: 1/8 NPT
• Material: Brass
• Series: 45° Flare
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Branch Tee
• Parker Division: Fluid Systems Connector (Brass Products)
• Parker Group: Fluid Connector
• SAE Compliance: J512 and J513
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 1400 PSI
