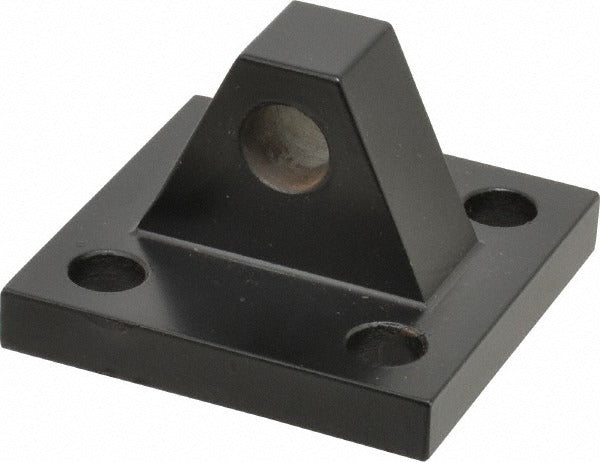

Parker 1458060050 Air Cylinder Eye Bracket 7/16-20

Product Description

The PARKER 1458060050 is an air cylinder eye bracket designed for use with pneumatic actuator systems. It provides a pivot-point mounting solution at the rod end or cap end of a cylinder, allowing the actuator to swing through an arc during operation. The bracket features a 7/16-20 threaded connection and is compatible with bore sizes ranging from 1-1/2 to 8 inches. This accessory is installed by maintenance technicians and automation system integrators working with Parker pneumatic cylinder assemblies. It weighs 5 pounds and is sold individually.

This eye bracket is suited for industrial and commercial pneumatic actuator applications where articulating or off-axis loads require a clevis-style pivot mount. It is rated for use across a wide bore range, making it adaptable to light-duty and heavier-duty cylinder configurations within the 3MA and 4MA series product lines. Typical installation scenarios include machine guarding, conveyor actuation, and process equipment where cylinder alignment must accommodate movement in more than one plane.

Key Features

• 7/16-20 threaded connection for secure attachment to compatible cylinder rods or end caps
• Supports bore sizes from 1-1/2 to 8 inches, covering a broad range of cylinder frame sizes
• Eye-style bracket design allows pivoting motion to accommodate off-axis or swinging cylinder loads
• Sold as a single unit, sized and threaded to OEM Parker specifications
• 5 pound weight reflects solid construction appropriate for industrial service

Compatibility

Designed for use with Parker 3MA and 4MA Series air cylinders with bore sizes from 1-1/2 to 8 inches.

Installation Notes

Installation is typically performed by a qualified mechanical or pneumatic systems technician. Before installing or removing any cylinder mounting accessory, depressurize the pneumatic circuit fully and verify that all stored mechanical energy in the actuator is released. Verify thread engagement depth meets applicable engineering standards before returning the assembly to service. Consult the Parker cylinder series documentation for recommended torque and mounting configuration guidance specific to the cylinder model in use.
