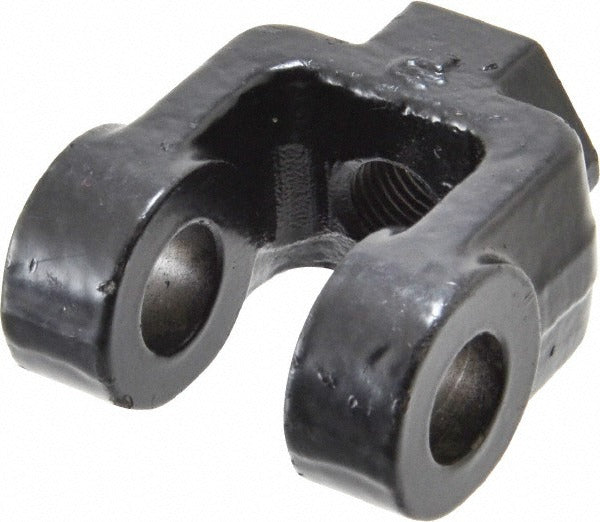

Parker 1458030044 Air Cylinder Rod Clevis 7/16-20 Thread

Product Description

The PARKER 1458030044 is an air cylinder rod clevis designed for use with Parker 3MA and 4MA series pneumatic cylinders. A rod clevis connects the cylinder rod to an external load or linkage, converting linear actuator motion into mechanical work at a pivot point. This clevis is threaded at 7/16-20 and accommodates bore sizes from 1-1/2 to 8 inches, making it suitable for a wide range of cylinder frame sizes within the supported series. It weighs 2 pounds. Pneumatic system technicians and millwrights install this type of accessory during cylinder assembly, replacement, or motion-control system builds.

This rod clevis is intended for use in pneumatic linear actuator applications where a pivoting rod-end connection is required. Typical installations include industrial machinery, automated assembly equipment, and process control systems that use Parker 3MA or 4MA series air cylinders. The 7/16-20 thread size and the 1-1/2 to 8 inch bore compatibility range allow a single clevis part to serve multiple cylinder frame sizes within those series, reducing the need for multiple unique end accessories across a varied equipment base.

Key Features

• 7/16-20 thread size for secure rod-end attachment
• Compatible with bore sizes from 1-1/2 to 8 inches within supported series
• Designed specifically for Parker 3MA and 4MA series air cylinders
• Provides a pivoting clevis connection to transfer linear motion to external linkage
• Single-unit packaging with no minimum order above one unit

Compatibility

Designed for use with Parker 3MA and 4MA series air cylinders with bore sizes ranging from 1-1/2 to 8 inches.

Installation Notes

Installation is typically performed by a qualified pneumatic systems technician or millwright. Always depressurize and lock out the pneumatic circuit before removing or installing cylinder accessories. Thread engagement should be confirmed to be full and secure before returning the system to service. Follow all applicable machinery safety standards and facility lockout/tagout procedures during service.
