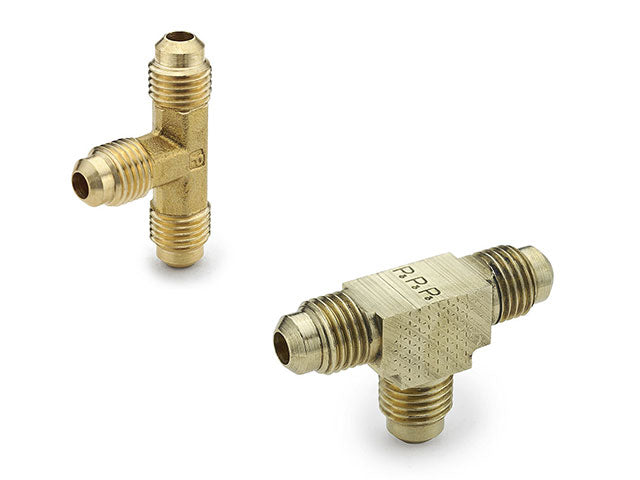

Parker 144F-8-8-6 Union Tee 144F-244F

Product Description

Parker 144F-8-8-6 is a union tee designed for use with various types of tubing. This product meets the standards of SAE J512 and J513. It is certified by Underwriter's Laboratories. The fitting is suitable for copper, brass, aluminum, or steel tubing that can be flared to forty-five degrees.

• Meets SAE J512 and J513 standards.
• Compatible with copper, brass, or aluminum tubing.
• Constructed from forged brass material.

Product Highlights

This fitting provides a secure connection for fluid systems.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 144F-8-8-6

Technical Specifications

• Material: Brass
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 750 PSI
• Outer Diameter 1: 1/2 Inch
• Outer Diameter 2: 1/2 Inch
• Outer Diameter 3: 3/8 Inch
• Thread 1: 3/4-16 UN/UNF
• Thread 2: 3/4-16 UN/UNF
• Thread 3: 5/8-18 UN/UNF
• Configuration Type: Flare to Flare
• Configuration Sub-Type: Union Tee
• Series: 45° Flare
• Parker Division: Fluid Systems Connector (Brass Products)
• Parker Group: Fluid Connector
• SAE Compliance: J512 and J513
