Parker 144F-6-6-4 Union Tee 45 Degree Flare (3/8 Inch / 1/4 Inch) Replacement MPN

Product Description

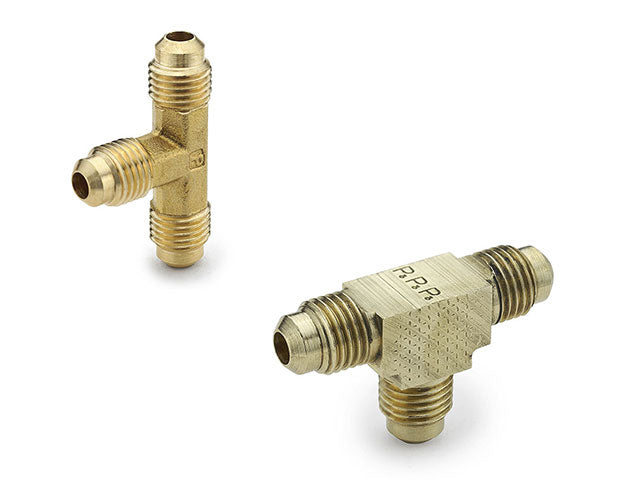

Parker 144F-6-6-4 Union Tee is a brass fitting designed for applications requiring a 45 degree flare connection. This fitting complies with SAE J512 and J513 standards and is suitable for use with copper, brass, aluminum, or steel tubing that can be flared to forty-five degrees.

• Meets SAE J512 and J513 standards
• Specifically designed for flaring 45 degree connections
• Compatible with various tubing materials

Product Highlights

This union tee connects three pipes at a 45-degree angle for efficient fluid transfer and is ideal for various plumbing and HVAC applications.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker

Technical Specifications

• Material: Brass
• Configuration Type: Flare to Flare
• Configuration Sub-Type: Union Tee
• Outer Diameter 1: 3/8 Inch
• Outer Diameter 2: 3/8 Inch
• Outer Diameter 3: 1/4 Inch
• Thread 1: 5/8-18 UN/UNF
• Thread 2: 5/8-18 UN/UNF
• Thread 3: 7/16-20 UN/UNF
• Pressure Rating: 1000 PSI
• Operating Temperature: -65°F to +250°F
• Parker Division: Fluid Systems Connector (Brass Products)
• SAE Compliance: J512 and J513
