Parker 14156-4-3 Female Jic Swivel 90 Elbow 3/16 in 6000 Psi

Product Description

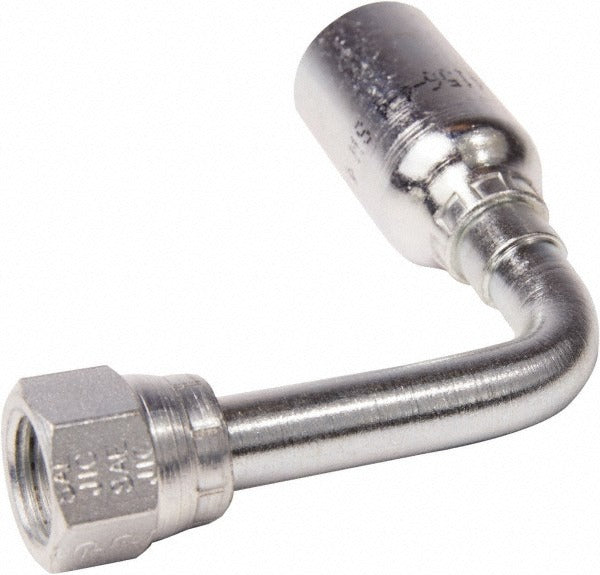

The PARKER 14156-4-3 is a long drop female JIC swivel 90 degree elbow fitting designed for high-pressure hydraulic hose assemblies. Rated at 6,000 psi, it provides a reliable directional change in hydraulic lines where routing clearance is limited. The long drop configuration creates additional offset from the port face, making it well suited for crowded manifold or valve block installations. Constructed from steel with a 7/16-20 JIC thread, it connects to 3/16 inch hose ends. The swivel design allows the fitting body to rotate during assembly, reducing hose twist and simplifying torque-free makeup on the bench or in the field. Hydraulic system technicians and mobile equipment mechanics are the primary installers of this fitting.

This fitting is used in industrial and mobile hydraulic circuits operating at pressures up to 6,000 psi. The 90 degree elbow geometry is commonly specified where a hose must exit a port perpendicular to the line of travel, such as on cylinders, pumps, motors, and valve manifolds. The long drop body style provides extra clearance in tight chassis or frame installations where a standard elbow body would conflict with surrounding hardware. It is catalogued under Parker Series 56 and is sold as a single fitting.

Key Features

• 6,000 psi pressure rating for demanding hydraulic applications
• Long drop body provides additional offset from the port face for routing flexibility
• Female JIC swivel end reduces hose twist during assembly and final torque
• 90 degree elbow geometry suits space-constrained pump, motor, and valve port installations
• Steel construction for durability in hydraulic service environments
• 7/16-20 JIC thread size compatible with standard JIC hose ends and adapters

Compatibility

Designed as an OEM-style hydraulic hose fitting for use with 3/16 inch hydraulic hose assemblies terminated with female JIC swivel ends, in systems operating within the 6,000 psi pressure rating. Catalogued under Parker Series 56.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic familiar with JIC fitting assembly procedures. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Inspect threads and seating surfaces for damage before assembly. Do not exceed the rated working pressure of the fitting or the connected hose assembly.
