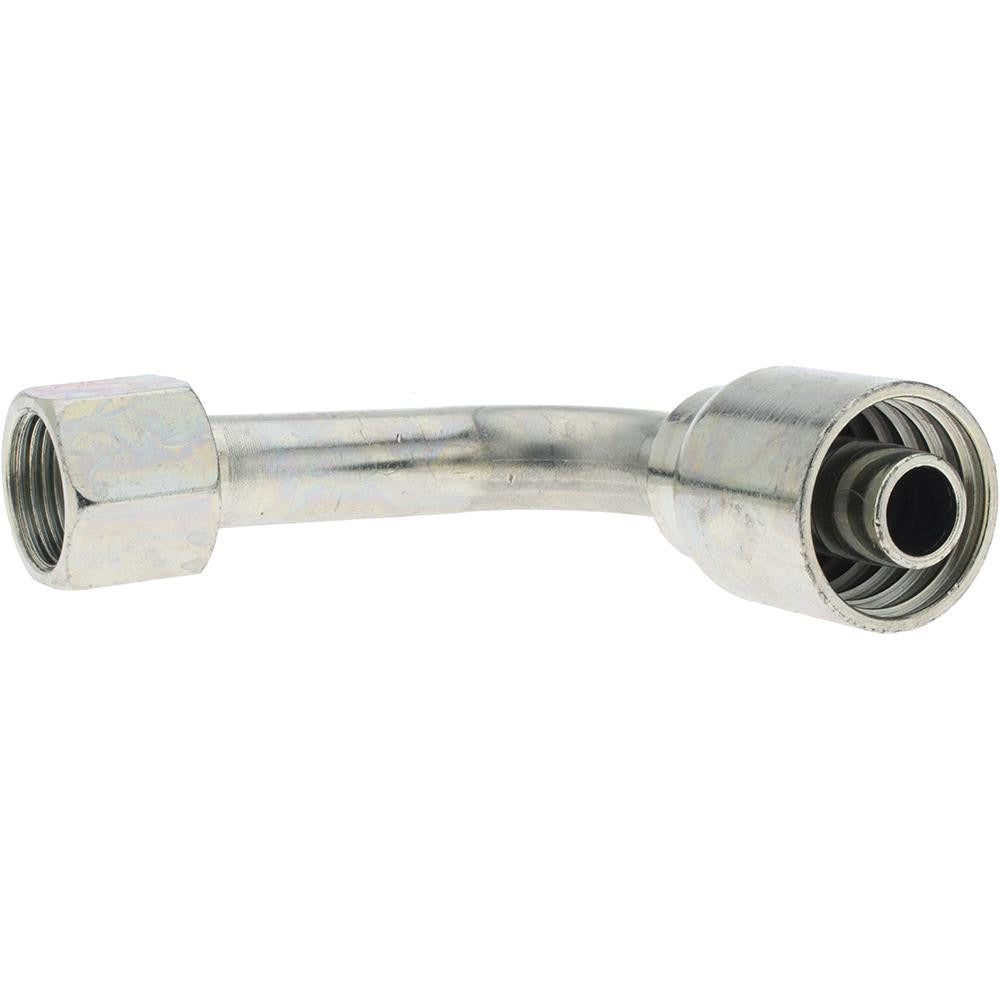

Parker 14143-8-8 Female Jic Swivel 90 Elbow Fitting 5000 Psi

Product Description

The PARKER 14143-8-8 is a long drop female JIC swivel 90-degree elbow fitting designed for hydraulic hose assemblies. It connects to 1/2-inch (hose size 8) hydraulic hose with a 3/4-16 threaded female JIC swivel interface. The 90-degree elbow geometry routes hose runs in tight spaces and reduces stress on hose ends at connection points. Constructed from steel, this fitting carries a pressure rating of 5,000 psi, making it suitable for high-pressure hydraulic circuits. It is installed by hydraulic system technicians and mobile equipment mechanics in both industrial and mobile applications.

This fitting is used in hydraulic hose assemblies where a 90-degree directional change is required at the hose termination point. The long drop configuration provides additional clearance between the hose end and the mating port, which is useful in confined equipment bays or when routing hose away from structural obstructions. It is compatible with a range of Parker hose series including 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 hoses, as specified by Parker.

Key Features

• Long drop elbow geometry provides clearance for tight routing in confined equipment bays
• 5,000 psi pressure rating suits high-pressure hydraulic circuits
• Female JIC swivel interface allows fitting alignment without rotating the hose
• Steel construction for durability in demanding hydraulic environments
• 3/4-16 thread size conforms to JIC/SAE 37-degree flare standards
• Compliant with ISO 12151-5 and subject to California Proposition 65 requirements

Compatibility

Designed for use with Parker 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hydraulic hoses, as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and lock out the hydraulic system completely before disconnecting or installing any hose fittings. The JIC swivel design allows the fitting body to be oriented before final torque is applied to the hose end connection. Follow applicable industry standards and equipment manufacturer torque guidelines for JIC swivel fittings during assembly.
