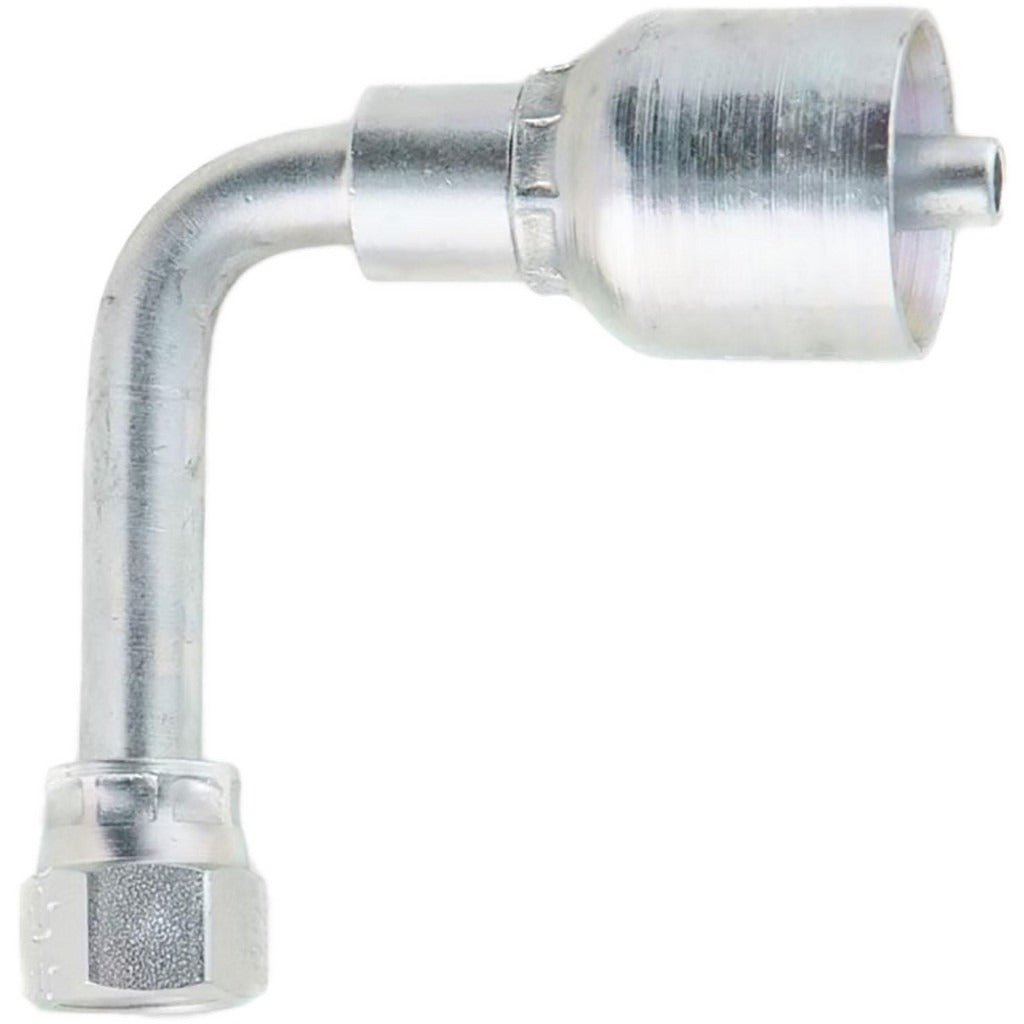

Parker 14143-6-4 Female Jic Swivel 90 Elbow Fitting 5000 Psi

Product Description

The PARKER 14143-6-4 is a long drop female JIC swivel 90-degree elbow hose fitting designed for high-pressure hydraulic hose assemblies. Built from steel with a threaded connection type, this fitting accommodates a hose inside diameter of 0.375 inches (hose size -4) and carries a maximum working pressure of 5,000 psi. The 9/16-18 thread size and 90-degree elbow geometry allow routing hose lines in tight or angled installations where a straight fitting would not clear surrounding components. Hydraulic technicians and fluid power specialists install this fitting when assembling or repairing mobile or industrial hydraulic circuits that require a low-profile directional change at the hose end.

This fitting is suited for use in hydraulic hose assemblies across agricultural, construction, industrial, and mobile equipment applications. The long drop configuration provides additional clearance from mounting surfaces, which simplifies routing in confined spaces. It is rated for the pressures typically encountered in medium- and high-pressure hydraulic circuits and meets ISO 12151-5 dimensional and performance standards. PARKER Series 43 fittings are a common choice for OEM hose assemblies and field repair work alike.

Key Features

• Long drop female JIC swivel 90-degree elbow geometry for angled hose routing in tight spaces
• Maximum working pressure of 5,000 psi for medium- and high-pressure hydraulic circuits
• Hose inside diameter of 0.375 inches (-4 hose size) with 9/16-18 thread
• Steel construction for durability in demanding hydraulic environments
• Meets ISO 12151-5 and California Proposition 65 compliance standards
• PARKER Series 43 fitting for broad hose series compatibility

Compatibility

Designed for use with PARKER 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hose series.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and bleed down the hydraulic system completely before removing or installing any fittings. Inspect the mating hose end and swivel threads for damage before assembly, and verify thread compatibility with the receiving port. Follow applicable industry standards and equipment manufacturer guidelines for assembly procedures and torque requirements.
