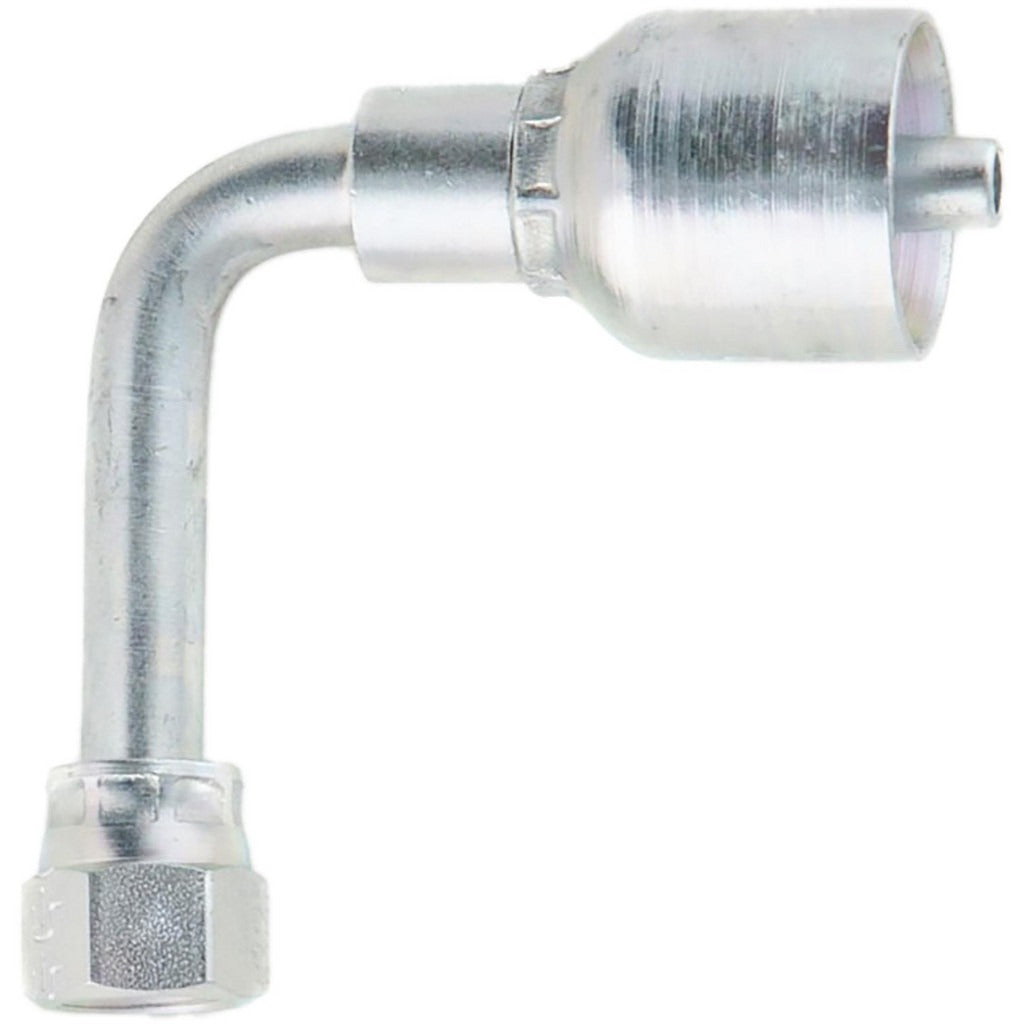

Parker 14143-5-4 Hydraulic Hose 90 Elbow 1/4 Inch Jic

Product Description

The PARKER 14143-5-4 is a 90-degree elbow hydraulic hose fitting designed for connecting flexible hydraulic hose to system components where a right-angle transition is required. Constructed from steel, this fitting features a Female JIC (Joint Industry Council) thread interface with a 1/2-20 thread size and is sized for 1/4-inch hose diameter. It is a standard hardware item used in hydraulic plumbing assemblies across industrial, mobile, and agricultural equipment. Installation is typically performed by hydraulic system technicians or maintenance mechanics as part of hose routing and fabrication work.

This fitting is suited for hydraulic circuits requiring a 90-degree directional change at the hose end, reducing strain and improving routing clearance in tight equipment compartments. The Female JIC connection style provides a leak-resistant flared-seat interface compatible with standard 37-degree flare hydraulic fittings. Typical applications include mobile hydraulic equipment, industrial machinery, and off-highway vehicles where steel fittings and JIC connections are standard practice.

Key Features

• 90-degree elbow configuration for right-angle hose routing
• Female JIC (37-degree flare) thread interface for leak-resistant sealing
• 1/2-20 thread size for standard JIC hydraulic connections
• Sized for 1/4-inch hydraulic hose diameter
• Steel construction for durability in hydraulic service environments
• Sold in packages of 2 per unit

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring a 90-degree Female JIC elbow with 1/2-20 thread and 1/4-inch hose sizing. Specific equipment compatibility should be verified against the hydraulic system's hose and fitting specifications before installation.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before disconnecting or connecting any fittings. Inspect the JIC flare seat and mating surface for damage or contamination prior to assembly. Follow equipment manufacturer torque guidelines and applicable industry standards for JIC fitting assembly to ensure a leak-free connection.
