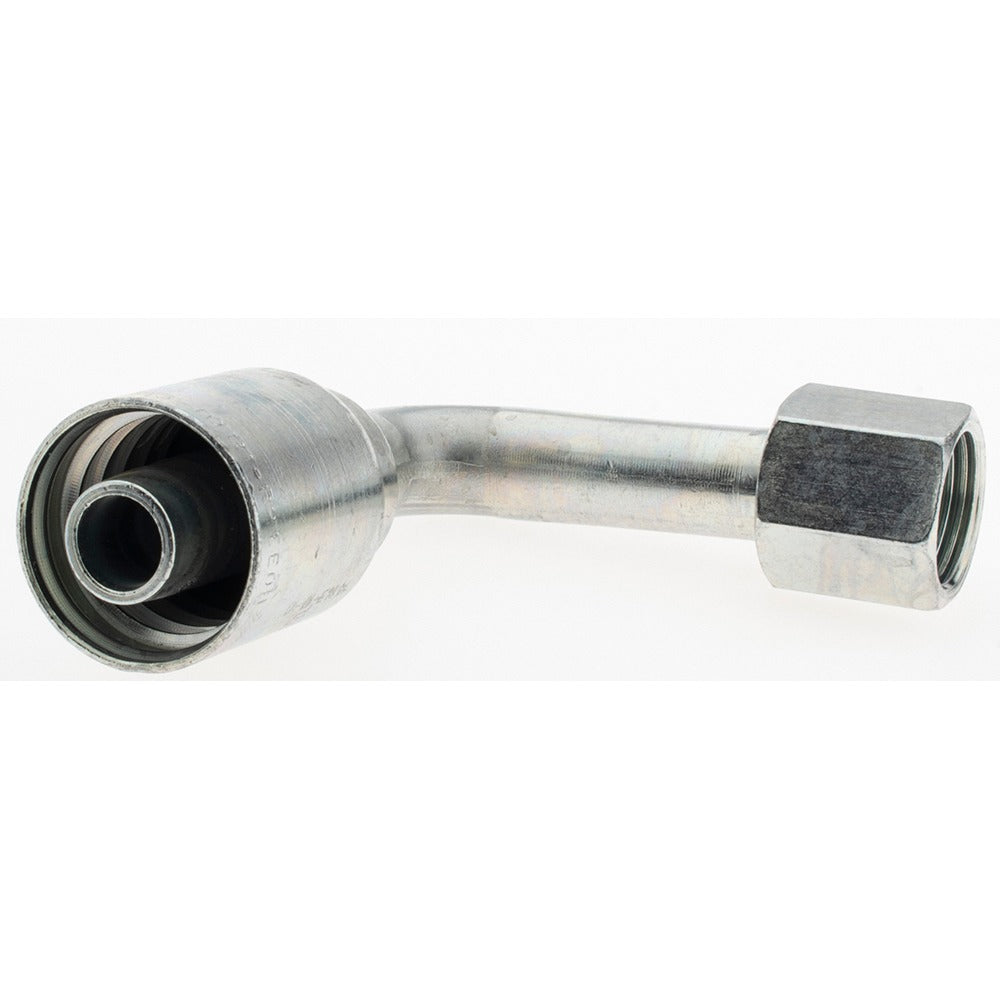

Parker 14143-10-10 Hydraulic Hose 90 Degree Elbow Fitting

Product Description

The PARKER 14143-10-10 is a 90-degree elbow hose fitting designed for use in hydraulic fluid power systems. Manufactured from steel with a female JIC threaded connection, this fitting provides a reliable 90-degree directional change in a hydraulic hose assembly. It is sized for a 5/8-inch (0.625-inch ID) hose with a 10 mm hose size designation and uses a 7/8-14 thread. The Series 43 fitting meets ISO 12151-5 standards and is intended for installation by hydraulic system technicians and industrial mechanics working on mobile or stationary hydraulic equipment.

This fitting is suited for medium- and high-pressure hydraulic hose assemblies in mobile equipment, industrial machinery, and fluid power systems. The 90-degree elbow geometry allows routing in tight spaces where a straight fitting cannot achieve the required hose path. It is compatible with a broad range of Parker hose series, making it a widely applicable fitting for shop fabrication or field repair of hydraulic hose assemblies.

Key Features

• 90-degree elbow configuration for directional hose routing in confined spaces
• Steel construction for durability in hydraulic system environments
• Female JIC threaded connection for secure, leak-resistant assembly
• 7/8-14 thread size compatible with 5/8-inch (0.625-inch) ID hose
• Meets ISO 12151-5 and California Proposition 65 compliance standards
• Parker Series 43 fitting for broad hose family compatibility

Compatibility

Designed for use with Parker 187 TC, ST; 302; 304; 387 TC, ST; 422; 424; 426; 436; 471TC; 471ST; 472TC; 482TC; 482ST; 487 TC, ST; 722 TC, ST; 787 TC, ST; 797 TC, ST; and 881 hose series.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic familiar with JIC threaded fittings and fluid power system assembly. Depressurize and isolate the hydraulic circuit completely before disconnecting or replacing any fitting. Use appropriate wrenches to achieve proper thread engagement without over-torquing the steel fitting body. Verify thread compatibility and hose ID before assembly to avoid mismatched connections.
