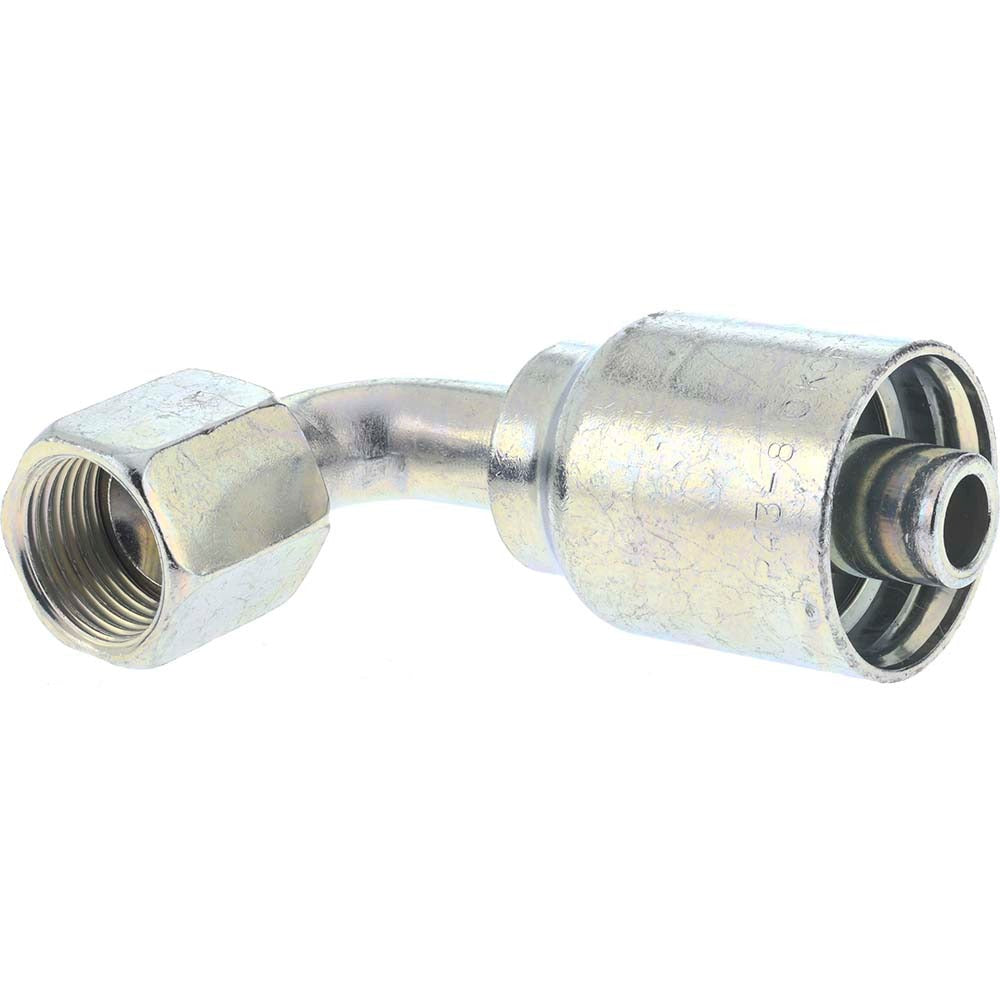

Parker 13943-8-8 Female Jic Swivel 90 Elbow Hose Fitting

Product Description

The PARKER 13943-8-8 is a short drop female JIC swivel 90 degree elbow hydraulic hose fitting designed to connect flexible hydraulic hose to JIC-threaded ports in tight-clearance installations. Built from steel, this Series 43 fitting features a 0.5 inch (1/2 inch) hose inside diameter, a 3/4-16 thread size, and a threaded connection type. The 90 degree elbow geometry allows the hose to exit at a right angle from the port, reducing bend radius stress at the fitting end. Licensed hydraulic technicians and fluid power specialists install this type of fitting in mobile equipment, industrial machinery, and hydraulic power unit assemblies.

This fitting is suited for medium- and high-pressure hydraulic hose assemblies in both mobile and stationary hydraulic systems. It is designed for use on size 8 hose with a 1/2 inch inside diameter. The swivel design allows the hose end to rotate during installation, preventing hose twist. This fitting is compliant with ISO 12151-5 and subject to California Proposition 65 requirements.

Key Features

• Short drop female JIC swivel 90 degree elbow geometry for right-angle port connections in confined spaces
• Steel construction for durability in hydraulic system environments
• Swivel design prevents hose twist during assembly torquing
• 3/4-16 thread size mates with standard JIC female fittings
• Compatible with a wide range of Parker hydraulic hose series
• Meets ISO 12151-5 standard for hose fittings

Compatibility

Designed for use with Parker hose series 187 TC ST, 302, 304, 387 TC ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC ST, 722 TC ST, 787 TC ST, 797 TC ST, and 881 hoses at size 8 (1/2 inch inside diameter).

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before disconnecting any fittings or hose assemblies. Use proper hose assembly tooling to ensure the hose is seated and crimped or clamped to the fitting per the hose manufacturer specifications. Verify thread engagement and check for leaks during system commissioning before returning the circuit to full operating pressure.
