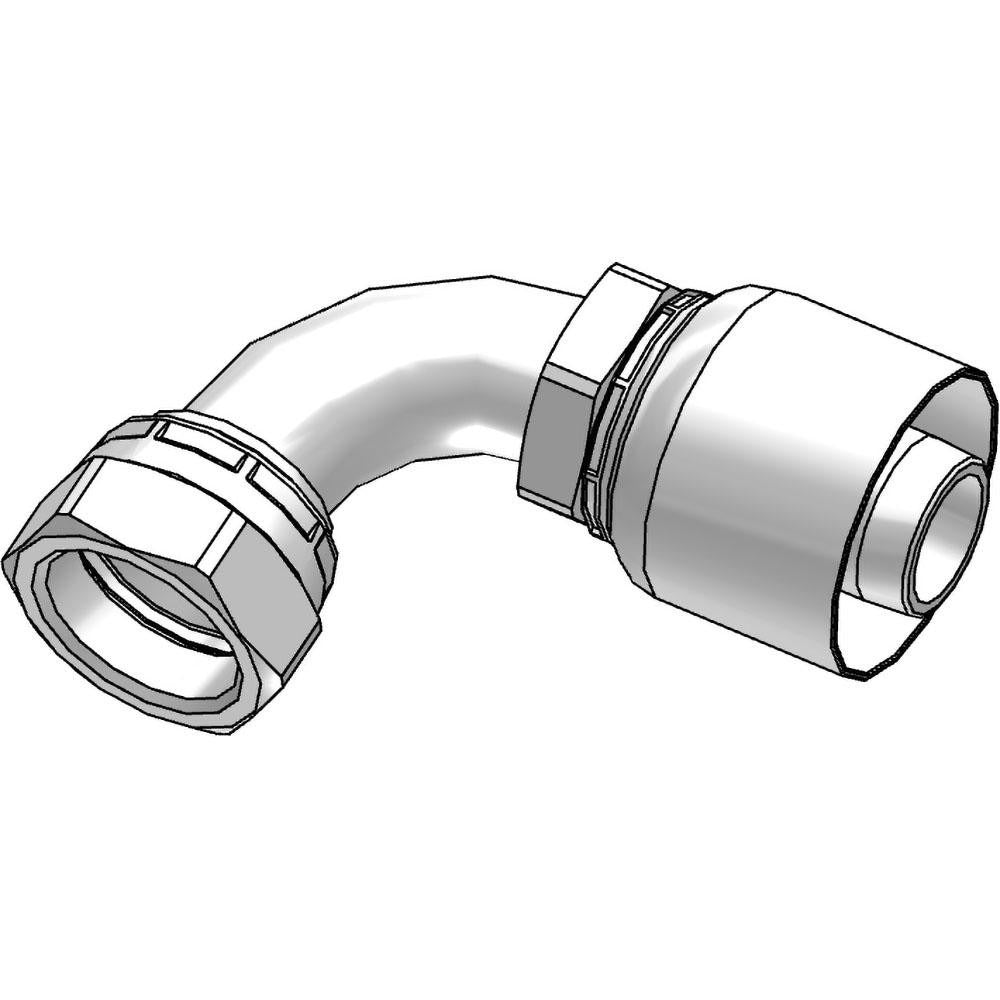

Parker 13943-20-20 Female Jic Swivel 90 Elbow 1.25 in Id

Product Description

The PARKER 13943-20-20 is a short drop female JIC swivel 90-degree elbow hose fitting designed for high-pressure hydraulic hose assemblies. Machined from steel, this Series 43 fitting accepts a 1.25-inch inside diameter hose (hose size 20) and terminates with a 1-5/8-12 inch female JIC threaded connection. The swivel design allows the female JIC end to rotate during assembly, making it easier to achieve correct torque without twisting the hose. Hydraulic technicians and fluid power specialists install this fitting when routing hose around obstacles or making 90-degree direction changes in a hydraulic circuit.

This fitting is suited for mobile hydraulic equipment, industrial machinery, and fluid power systems where a compact 90-degree elbow transition is required. The short drop profile keeps the fitting close to the port face, reducing leverage loads on the hose end. It is commonly used in agriculture, construction, and manufacturing hydraulic systems that demand reliable, leak-free JIC swivel connections at the hose termination point.

Key Features

• Short drop geometry minimizes hose stress at the fitting connection point
• Female JIC swivel design allows rotation during assembly to prevent hose twist
• 1-5/8-12 inch threaded connection meets standard JIC 37-degree flare seating
• Steel construction provides strength and durability in high-pressure hydraulic service
• Compliant with ISO 12151-5 hose fitting standards
• California Proposition 65 compliant

Compatibility

Compatible with Parker hose series 187 TC ST, 302, 304, 387 TC ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC ST, 722 TC ST, 787 TC ST, 797 TC ST, and 881 hoses with a 1.25-inch inside diameter (hose size 20).

Installation Notes

Hydraulic hose assemblies should be installed by a qualified fluid power technician following applicable hydraulic system safety procedures. Relieve all hydraulic pressure and depressurize the circuit before removing or installing any hose fitting. Use the swivel feature to thread the JIC connection onto the port without inducing twist in the hose body, then tighten to the equipment or fitting manufacturer torque specification. Inspect the JIC flare seat and mating surface for damage before assembly to ensure a leak-free connection.
