Parker 13943-16-16 Female Jic Swivel 90 Elbow Size 16

Product Description

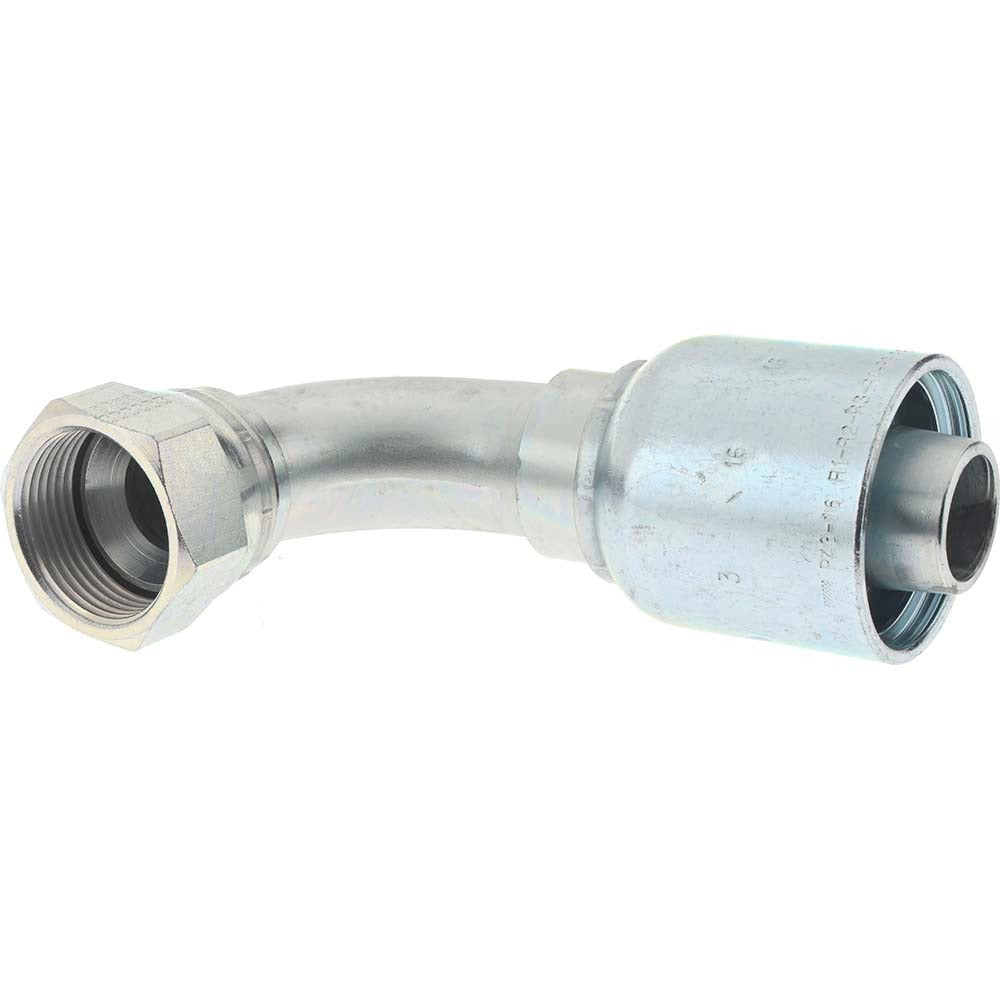

The PARKER 13943-16-16 is a short drop female JIC swivel 90-degree elbow fitting designed for high-pressure hydraulic hose assemblies. Built from steel, this Series 43 fitting connects hydraulic hoses with a 1-inch inside diameter (Size 16) to mating JIC female threaded ports using a 1-5/16-12 thread size. The 90-degree elbow geometry reduces stress on hose ends in tight routing applications, while the swivel design allows final positioning without twisting the hose. Licensed hydraulic technicians and industrial mechanics install this fitting when assembling or repairing hydraulic lines in mobile, agricultural, and industrial equipment.

This fitting is engineered for use in hydraulic hose assemblies where space constraints or directional routing require a right-angle transition at the hose end. The short drop profile keeps the fitting compact, making it well suited for crowded manifold areas or equipment frames. Compatible hose series include the Parker 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hoses. Always verify hose series and ID before assembly.

Key Features

• Short drop female JIC swivel 90-degree elbow configuration for tight routing clearances
• Steel construction for durability in high-pressure hydraulic service
• Swivel design prevents hose twist during final tightening
• 1-5/16-12 thread size for secure, leak-resistant JIC connections
• Compliant with ISO 12151-5 for hydraulic fluid power hose fittings
• California Proposition 65 compliant

Compatibility

Designed for use with Parker hose series 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hoses with a 1-inch inside diameter (Size 16).

Installation Notes

This fitting is installed by qualified hydraulic technicians or industrial mechanics. Depressurize and fully relieve the hydraulic system before disconnecting any existing fittings or hoses. Inspect the mating JIC seat and thread condition before assembly, and use appropriate thread sealant or dry-torque practices per the equipment manufacturer's service documentation. Do not over-tighten; follow standard JIC assembly procedures to avoid distorting the 37-degree flare seat.
