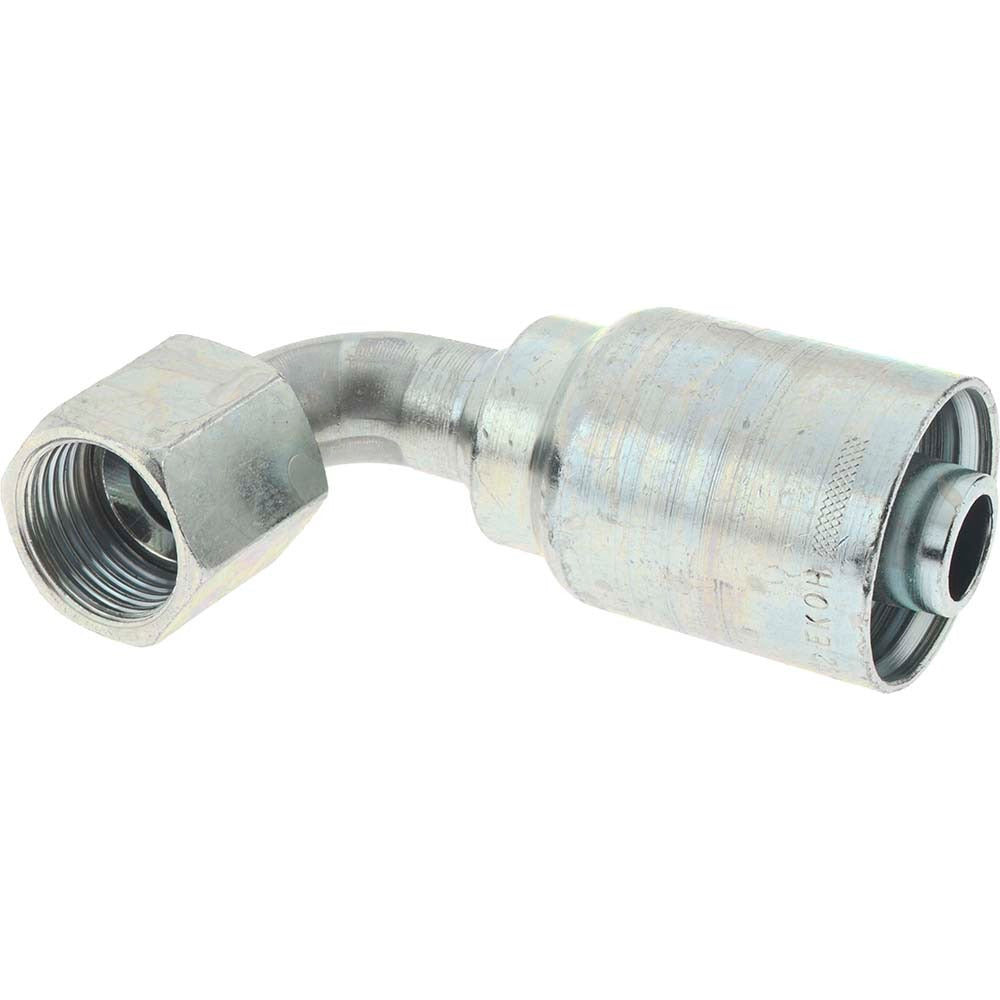

Parker 13943-10-10 Female Jic Swivel 90 Elbow 5/8 in

Product Description

The PARKER 13943-10-10 is a short drop female JIC swivel 90-degree elbow fitting designed for hydraulic hose assemblies. Machined from steel and threaded at 7/8-14, it accepts hoses with a 0.625-inch (5/8-inch) inside diameter, corresponding to hose size 10. The 90-degree swivel configuration allows the hose to route at a right angle to the port while still permitting rotational adjustment during installation, reducing stress on the hose and fitting. This fitting is intended for licensed hydraulic technicians and mobile or industrial equipment mechanics who assemble or service high-pressure hydraulic lines.

This fitting is used in hydraulic hose assemblies on mobile equipment, industrial machinery, and agricultural applications where a low-profile 90-degree hose exit is required. Its short-drop body keeps the hose connection close to the work envelope, making it well suited for tight routing in frames, booms, or cylinder circuits. The female JIC swivel end provides a leak-resistant connection when properly torqued to a male JIC port.

Key Features

• Short drop body keeps hose routing compact in confined spaces
• Female JIC swivel end allows rotational positioning before final torque
• 90-degree elbow reduces hose bend radius stress at the connection point
• Steel construction for compatibility with high-pressure hydraulic service
• Meets ISO 12151-5 standard for hose fittings
• California Proposition 65 listed

Compatibility

Designed for use with Parker 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hoses. Compatible with hoses having a 0.625-inch inside diameter (hose size 10). Part of Parker Series 43 fittings.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with JIC threaded fitting assembly. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Clean all threads and inspect for damage before assembly. Do not overtighten the swivel nut; follow the fitting manufacturer and equipment OEM torque guidelines for 7/8-14 JIC connections.
