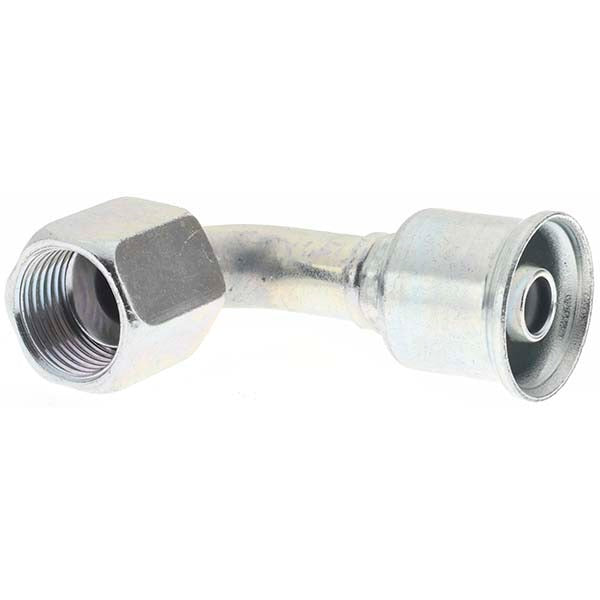

Parker 13926-8-8 Female Jic Swivel 90 Elbow 13/32 in Steel

Product Description

The PARKER 13926-8-8 is a short drop female JIC swivel 90-degree elbow fitting designed for hydraulic hose assemblies. It connects a hose end to a JIC-threaded port at a 90-degree angle, allowing direction changes in tight routing environments without sharp hose bends. The fitting uses a 3/4-16 female JIC swivel thread and accommodates a hose with a 13/32-inch inside diameter. Constructed from steel, it is suited for standard hydraulic system pressures. This type of fitting is commonly installed by hydraulic system technicians and equipment mechanics working on mobile or industrial machinery.

This fitting is used in hydraulic hose assemblies where a 90-degree transition is needed between a hose end and a fixed JIC port. The short drop configuration keeps the hose connection close to the port, reducing the overall assembly footprint. Typical applications include mobile equipment, agricultural machinery, industrial power units, and any system requiring compact hose routing at a right angle. It is installed as part of new hose assemblies or as a replacement fitting during hose rebuild and repair work.

Key Features

• Short drop 90-degree elbow design reduces hose routing space requirements
• Female JIC swivel connection allows rotational positioning during assembly
• 3/4-16 JIC thread size for standard hydraulic port compatibility
• 13/32-inch hose inside diameter rating matches common hydraulic hose sizes
• Steel construction provides durability in high-pressure hydraulic environments

Compatibility

Designed as an OEM-style replacement or new-assembly fitting for hydraulic hose systems using size 8 hose with a 3/4-16 female JIC swivel 90-degree elbow connection point.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and relieve all stored hydraulic energy from the system before removing or installing any fittings. Inspect the mating JIC seat and threads for damage before assembly. Torque to the hose fitting manufacturer specification for the thread size and material used; consult Parker published assembly guidelines for this fitting series.
