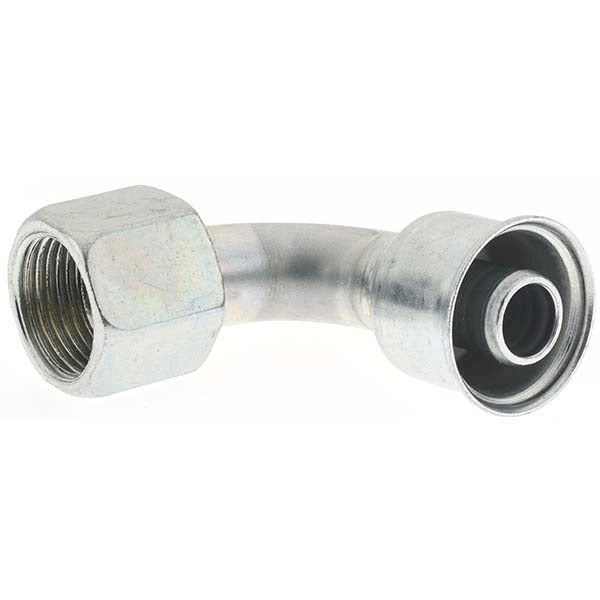

Parker 13926-12-12 Female Jic Swivel 90 Elbow 5/8 in Hose

Product Description

The PARKER 13926-12-12 is a short drop female JIC swivel 90-degree elbow fitting designed for hydraulic hose assemblies. It connects a 5/8-inch hose to a 1-1/16-12 female JIC threaded port, allowing the hose to route at a right angle from the connection point. The short drop profile keeps the assembly compact and reduces stress on the hose end. Constructed from steel for durability under hydraulic system pressures, this fitting is used by hydraulic system technicians and equipment mechanics assembling or repairing fluid power lines on mobile and industrial equipment.

This fitting is suited for hydraulic hose assemblies on mobile machinery, agricultural equipment, construction equipment, and industrial fluid power systems where a 90-degree change in hose direction is required at the port connection. The 5/8-inch hose size and 1-1/16-12 JIC thread make it compatible with standard SAE hydraulic hose and JIC-ported components. It is commonly installed when routing hose in tight spaces where a straight fitting would cause excessive hose bend or kinking at the connection point.

Key Features

• Short drop 90-degree elbow profile reduces hose stress and saves space in tight routing applications
• Female JIC swivel design allows the fitting to rotate during installation for proper hose alignment without twisting the hose
• Accepts 5/8-inch hydraulic hose with a 1-1/16-12 JIC thread connection
• Steel construction provides strength and resistance to hydraulic fluid environments
• Sold in a package quantity of 2 per order

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using 5/8-inch hose and 1-1/16-12 female JIC threaded ports on mobile or industrial hydraulic systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the JIC seat and mating surface for damage before assembly. Tighten swivel nut to the fitting body using proper hydraulic fitting assembly practices in accordance with applicable equipment manufacturer torque guidelines and SAE standards.
