Parker 13743-6-6 Female Sae 45 Swivel Hose Fitting 3/8 in

Product Description

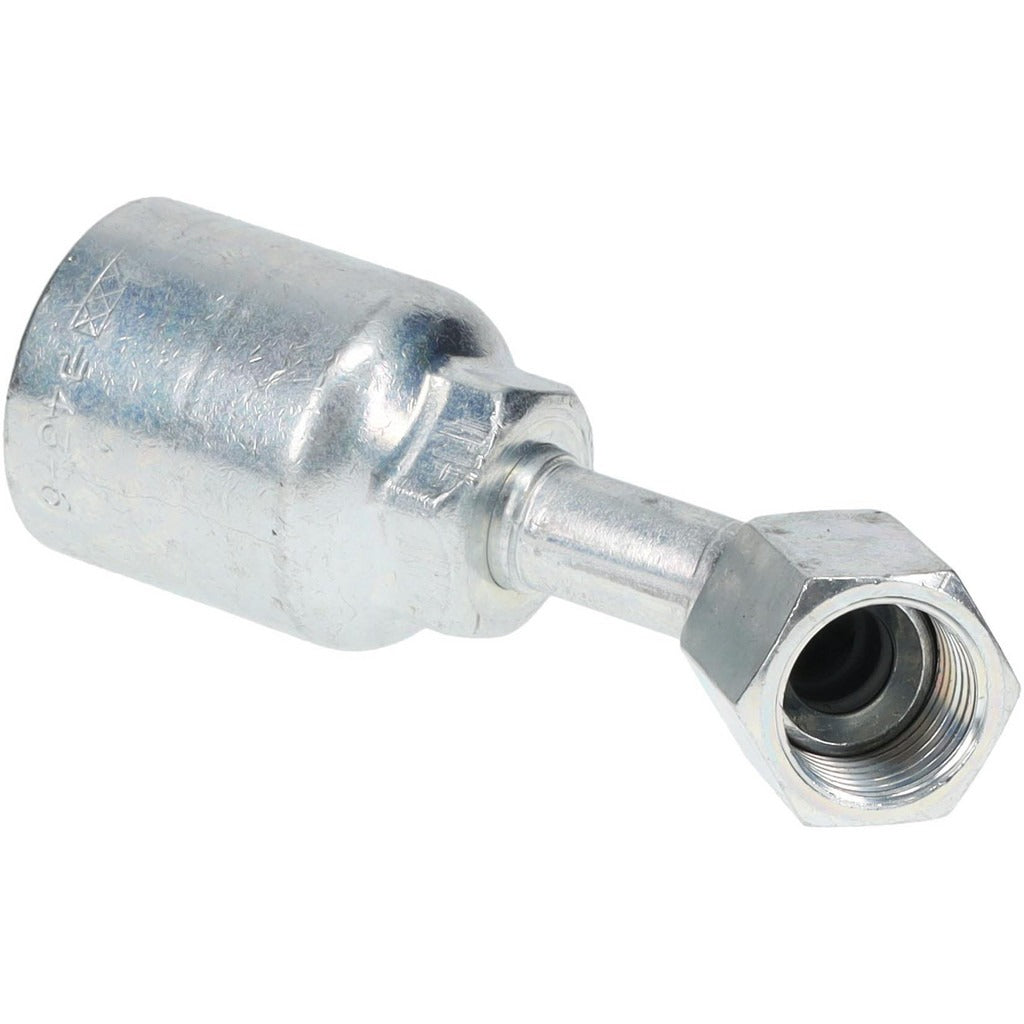

The PARKER 13743-6-6 is a female SAE 45-degree swivel elbow fitting designed for hydraulic hose assemblies. It connects a hose with a 0.375-inch inside diameter (size 6) to a 3/8-inch female JIC threaded port at a 45-degree angle. Constructed from steel, this fitting uses a swivel design that allows rotational adjustment during assembly, reducing installation stress on the hose and mating port. It is part of the PARKER Series 43 fitting line and conforms to ISO 12151-5 standards. Licensed HVAC, plumbing, and hydraulic professionals rely on fittings like this for tight-routing applications where straight connections are not practical.

This fitting is suited for hydraulic plumbing in mobile equipment, industrial machinery, and fluid power systems where a 45-degree hose exit angle is required. The threaded female JIC connection mates with standard male JIC or SAE 45-degree flare ports. It is compatible with a broad range of PARKER hydraulic hoses including the 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 series hoses. This makes it applicable across a wide variety of hydraulic circuit builds and hose replacement jobs in the field or shop.

Key Features

• 45-degree elbow swivel design allows angular hose routing in confined spaces
• Female JIC threaded connection for secure, leak-resistant assembly
• Steel construction for durability in high-pressure hydraulic environments
• Compatible with PARKER size 6 hoses at 0.375-inch inside diameter
• Conforms to ISO 12151-5 fitting standards
• California Proposition 65 compliant

Compatibility

Designed for use with PARKER 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 series hydraulic hoses with a size 6 (0.375-inch ID) hose dimension.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter familiar with fluid power systems. Depressurize and fully discharge the hydraulic system before disconnecting or installing any fittings. Use appropriate thread sealant or verify whether a dry thread connection is specified for the application. Torque the fitting to the system or equipment manufacturer's specifications — do not over-tighten, as steel JIC fittings rely on a metal-to-metal flare seat for sealing.
