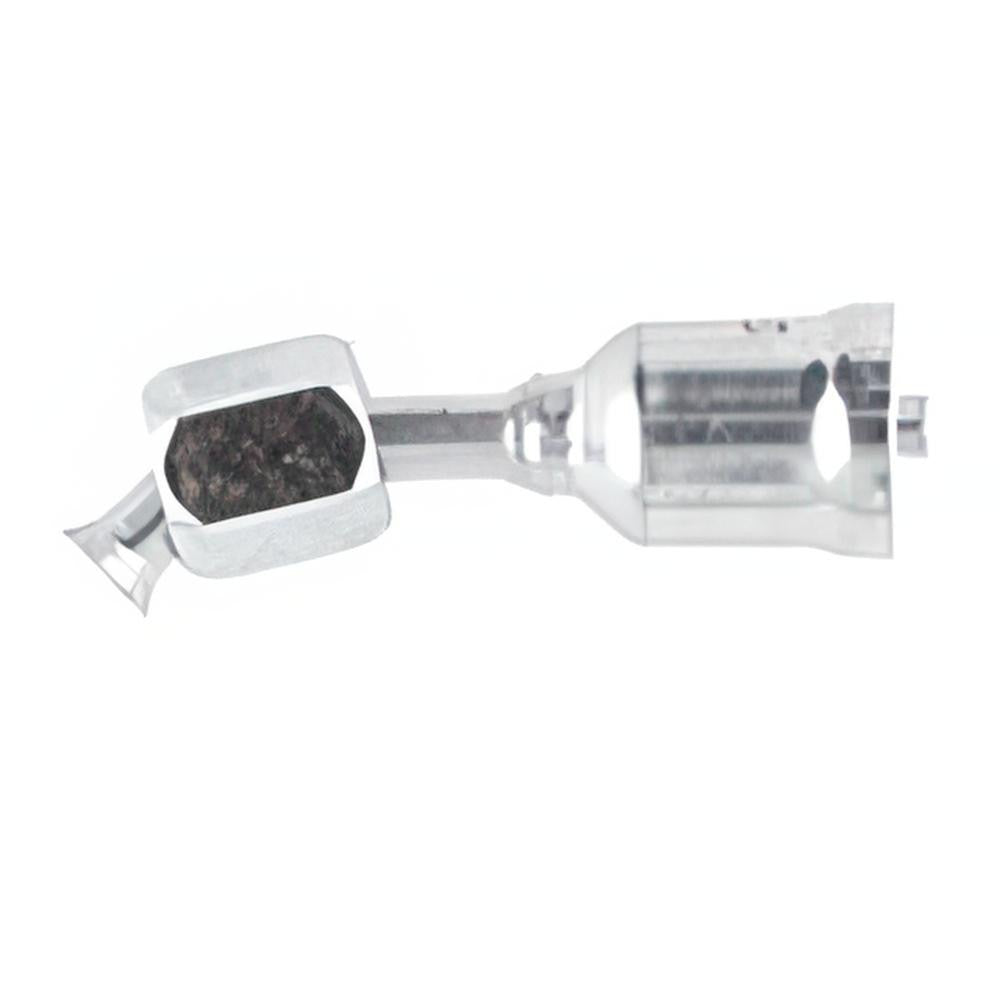

Parker 13726-12-12 Female Sae 45 Jic Swivel Hose Fitting

Product Description

The PARKER 13726-12-12 is a straight female SAE 45-degree JIC swivel hydraulic hose fitting manufactured from steel. It is designed to connect a 5/8-inch hydraulic hose to a 1-1/16-12 threaded port using a swivel interface that allows rotational adjustment during assembly without twisting the hose. The 45-degree JIC seat provides a reliable metal-to-metal seal under high hydraulic system pressures. This fitting is a standard component in hydraulic circuits found across mobile equipment, industrial machinery, and fluid power systems. Licensed hydraulic technicians and equipment mechanics install this fitting as part of hose assembly and system plumbing work.

This fitting is suited for use in hydraulic hose assemblies where a straight female swivel termination is required at the hose end. The swivel design accommodates alignment during connection and reduces stress on the hose body at the fitting junction. Applications include mobile hydraulics on agricultural, construction, and material-handling equipment, as well as stationary industrial hydraulic power units. The 10 mm hose size designation corresponds to a 5/8-inch hose inside diameter, and the 1-1/16-12 thread mates with standard SAE 45-degree JIC male fittings.

Key Features

• SAE 45-degree JIC swivel fitting provides metal-to-metal seal at the flare seat
• Swivel design allows rotational adjustment during hose assembly and installation
• Straight body orientation simplifies inline hose routing
• Steel construction for durability in high-pressure hydraulic service
• 1-1/16-12 thread size mates with standard SAE 45-degree JIC male ports
• Fits 5/8-inch (10 mm) hydraulic hose

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring a straight female SAE 45-degree JIC swivel connection at a 1-1/16-12 threaded port with a 5/8-inch hose end.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Hand-tighten the swivel nut onto the mating male JIC fitting, then torque to the fitting manufacturer's standard specification for the thread size using a calibrated torque wrench. Inspect the flare seat and threads for damage before assembly, and do not reuse fittings that show signs of deformation or thread wear.
