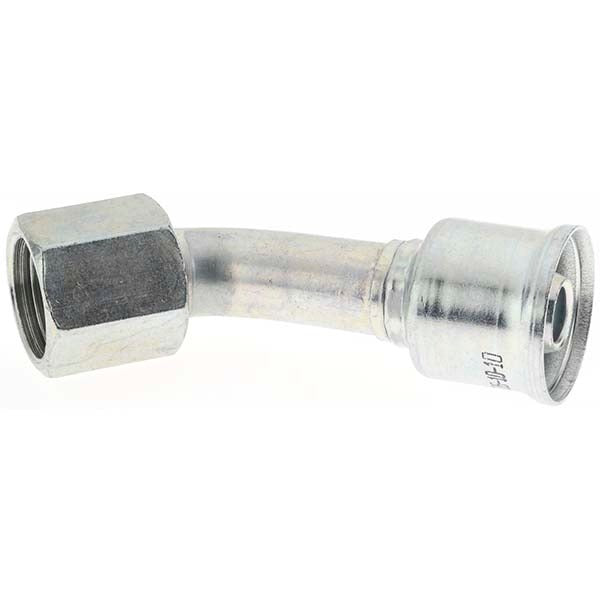

Parker 13726-10-10 Female Jic Swivel 45 Elbow Fitting

Product Description

The PARKER 13726-10-10 is a female JIC swivel 45-degree elbow fitting designed for hydraulic hose assemblies. Machined from steel, it accepts a 1/2-inch hose and threads onto a 7/8-14 JIC female connection. The 45-degree elbow angle allows routing hose lines around obstructions in tight plumbing layouts without creating sharp bends that could damage hose integrity. This fitting is installed by hydraulic system technicians and fluid power mechanics in mobile equipment, industrial machinery, and hydraulic power unit applications where directional changes in the hose run are required.

This fitting is suited for hydraulic hose assemblies in both mobile and stationary equipment where a 45-degree change in direction is needed at the hose-to-port or hose-to-component junction. Compatible with standard JIC 37-degree flare hydraulic systems, it serves applications in agricultural equipment, construction machinery, and industrial hydraulic circuits where reliable swivel movement during installation helps reduce stress on the hose and fitting assembly.

Key Features

• 45-degree elbow angle allows directional routing with minimal hose stress
• Female JIC swivel design eases alignment during assembly without twisting the hose
• Steel construction provides durability in high-pressure hydraulic service
• 7/8-14 thread size matches standard JIC female port connections
• Fits 1/2-inch hydraulic hose for common mid-range flow applications

Compatibility

Designed as an OEM-style replacement or new-build fitting for hydraulic hose assemblies using standard JIC 37-degree flare connections with a 1/2-inch hose and 7/8-14 female thread.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed the hydraulic system fully before removing any existing fittings or hose assemblies. Inspect threads and seating surfaces for damage before assembly, and torque the fitting to the system manufacturer's specification for JIC connections. Follow applicable industry standards for hydraulic hose and fitting assembly to ensure a leak-free, safe installation.
