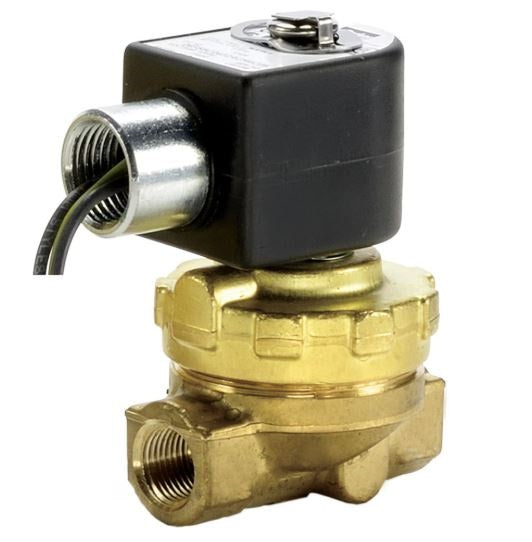

Parker 12FS5C2448ACH4C05 2-Way Steam Valve

Product Description

The Parker 12FS5C2448ACH4C05 is a two-way solenoid valve suitable for steam and hot water systems. This valve operates in a normally closed configuration, allowing for precise control in various applications.

• Features a three-quarter inch NPT port for easy connection.
• Constructed with brass and has PTFE seals for durability.
• Includes a half-inch conduit with eighteen-inch electrical leads.

Product Highlights

This product is ideal for professionals working with steam and hot water systems, ensuring reliable operation and longevity.

Product Information

Standard Information

• Product Type: Solenoid Valve 2W Steam Valves
• Configuration: 2 Way

Technical Specifications

• Operation: Normally Closed
• Media: Steam
• Port Size: 3/4 inch
• Connection: NPT
• Maximum Operating Pressure Differential: 125 PSI
• Minimum Pressure Differential: 1.0 psi
• Input Voltage: 110/50 VAC
• Body Material: Brass
• Seal Material: PTFE
• Flow Coefficient: 7.4 Cv
• Orifice Diameter: 3/4 inch
• Coil Terminations: 18 Inch Leads
• Power Consumption: 11 W
• Ambient Temperature: 32 F - 77 F
• Fluid Temperature: 353 F
• Ingress Protection Rating: NEMA 4
• Division: Fluid Control Division
