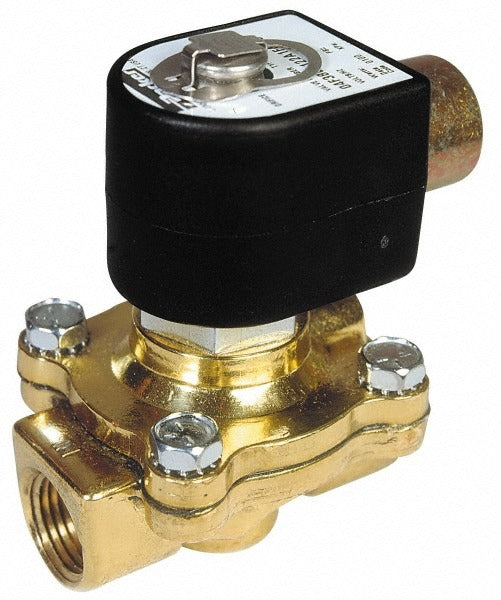

Parker 12F23O6148ACF 2-way Solenoid Valve 3/4 in Npt

Product Description

The PARKER 12F23O6148ACF is a two-way, piloted diaphragm solenoid valve designed for reliable on/off flow control in fluid, gas, and light oil service lines. The valve ships in a normally open configuration, closing when the coil is energized. Built with a stainless steel body and NBR seal, it handles operating pressures up to 150 psi and media temperatures up to 175 degrees F. The 3/4-inch NPT port and 0.75-inch orifice deliver a Cv factor of 5.0, making it well suited for moderate-flow applications. Licensed plumbers, pipefitters, and industrial maintenance technicians are the primary installers for this type of valve.

This valve is applied in residential, commercial, and light industrial piping systems where automated shutoff or flow control is required. Compatible media include water, air, inert gases, and light oils, making it a versatile choice for HVAC fluid circuits, process lines, and general plant utility piping. The multi-voltage coil accepts 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac inputs, allowing integration into a wide range of control panel configurations without sourcing a separate coil. The coil draws 11 watts.

Key Features

• Normally open two-way piloted diaphragm design closes on coil energization
• Stainless steel body resists corrosion in wet and chemical-adjacent service
• NBR seal rated for fluids, gases, and light oils up to 175 degrees F
• Multi-voltage compatibility: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60-110/50 Vac, 240/60-220/50 Vac
• Zero minimum operating pressure differential allows use in low-delta-P systems
• CSA Certified, UL Listed, and NEMA 4X rated enclosure for wet and outdoor locations

Compatibility

Designed as an OEM-style replacement or direct installation solenoid valve for two-way piloted diaphragm applications on 3/4-inch NPT pipe systems handling fluids, gases, or light oils. Cross-references ASCO Number 8210G38.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter following applicable local codes and the International Plumbing Code where adopted. Shut off system pressure and de-energize all control circuits before removing or installing the valve. Verify that supply voltage matches one of the rated coil voltages before energizing. Note that solenoid coils are not included with this valve body and must be ordered separately.
