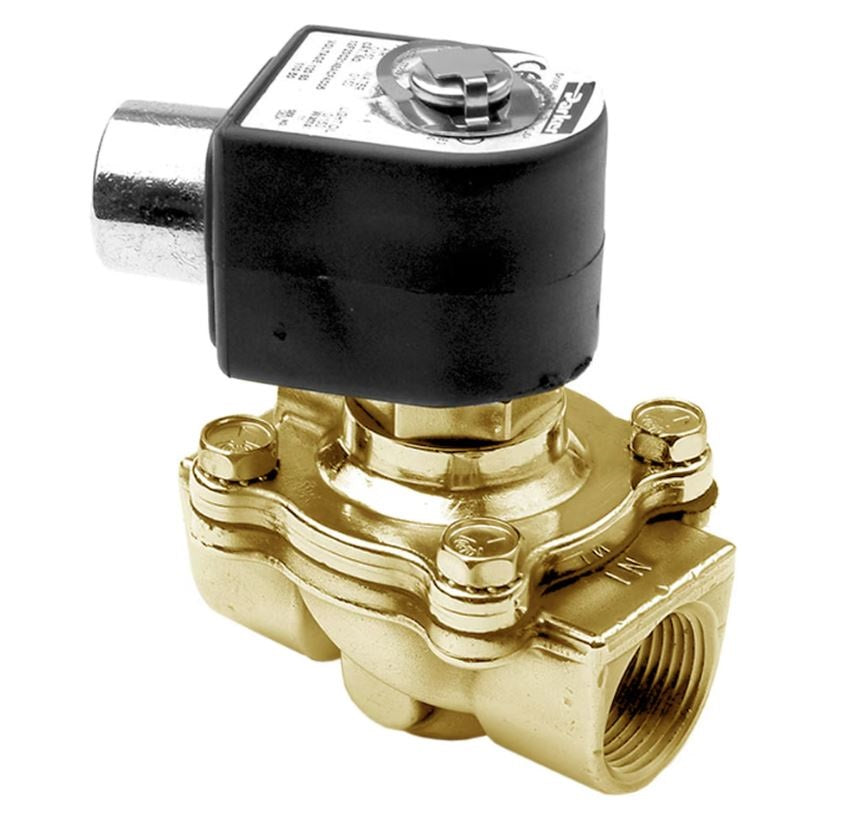

Parker 12F23O2148ACF4C05 2-Way Normally Open Solenoid Valve

Product Description

The Parker 12F23O2148ACF4C05 is a 2-way solenoid valve utilized for various applications involving air, liquids, and gases. This valve features a brass body and is equipped with NBR seals, making it durable for general use. It operates in a normally open configuration and has three-quarters inch NPT ports, accommodating pressure levels from zero to one hundred fifty psi. Actuation is achieved via a hung diaphragm, and it includes a Class F insulated coil with a half inch NPT conduit and leads.

• 2-way normally open configuration
• Three-quarters inch NPT port size with brass body
• Operates under pressures from zero to one hundred fifty psi

Product Highlights

This solenoid valve is suited for many general-purpose applications. Its robust construction ensures reliability and long-term performance.

Product Information

Standard Information

• Brand: Parker
• MPN: 12F23O2148ACF4C05

Technical Specifications

• Series: Gold Ring Series
• Valve Type: 2-Way
• Function: Normally Open
• Port Size: 3/4 inch
• Input Voltage: 120/60, 110/50 VAC
• Body Material: Brass
• Seal Material: NBR
• Orifice Size: 3/4 inch
• Flow Factor 1 (Cv): 5.5
• Power Consumption: 11.0 W
• Coil Type: 1/2 NPT Conduit w/ Leads (Incl. Ground Lead)
• Maximum Fluid Temperature: 150.0 °F
• Maximum Pressure Differential: 150.0 psi
• Number of Ports: 2
• Actuation Type: Direct Lift
• Media: General Purpose
• Port Type: NPT
• Minimum Pressure Differential: 0.0 psi
• Minimum Fluid Temperature: 0
• Insulation Class: Class F
• Coil Protection Mode: Class F
• Ingress Protection Rating: NEMA 4,4X
• Main Flow Coefficient: 5.0 Cv
• Maximum Ambient Temperature: 130.0 °F
• Specifications Met: UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC
