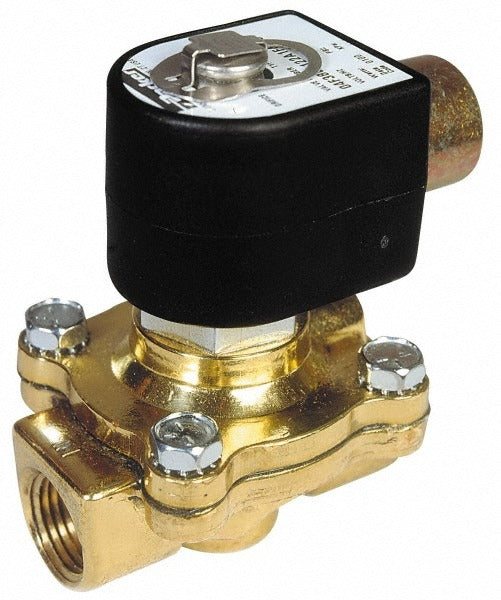

Parker 12F23C6148ACF 2-way Solenoid Valve 3/4 in Npt

Product Description

The PARKER 12F23C6148ACF is a two-way, piloted diaphragm solenoid valve designed for flow control in fluid, gas, and light oil systems. Rated for a maximum working pressure of 150 psi and a Cv factor of 5.0, this normally closed valve requires no minimum operating pressure differential, making it suitable for low-differential-pressure applications. The stainless steel body provides corrosion resistance in demanding service environments, while the NBR seal material handles a broad range of compatible media. Note that solenoid coils are sold separately and are not included with this valve. The valve is installed by licensed plumbers, pipefitters, or HVAC technicians depending on the application and system type.

This valve is well suited for industrial, commercial, and mechanical system applications involving fluids, gases, or light oils. The 3/4 inch NPT threaded port allows direct inline installation in standard pipe systems. Its piloted diaphragm design and zero-minimum-differential operation make it a reliable choice for systems where pressure conditions vary. The ASCO cross-reference number 8210G88 provides an additional reference point for procurement and replacement sourcing.

Key Features

• Two-way, piloted diaphragm design for reliable on/off flow control
• Normally closed operation — valve closes when de-energized
• Stainless steel body for corrosion resistance in harsh environments
• NBR seal material compatible with fluids, gases, and light oils
• Zero minimum operating pressure differential required
• 11-watt AC coil power — solenoid coil sold separately

Compatibility

Designed for inline installation in 3/4 inch NPT pipe systems handling fluids, gases, or light oils at pressures up to 150 psi. Cross-references ASCO Number 8210G88 for replacement and sourcing reference.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified mechanical contractor in accordance with applicable local codes. Shut off system pressure and de-energize all related electrical circuits before servicing or installing the valve. Solenoid coils are not included and must be sourced and wired separately by a qualified electrician per applicable NEC requirements. Verify media compatibility with NBR seal material before installation.
