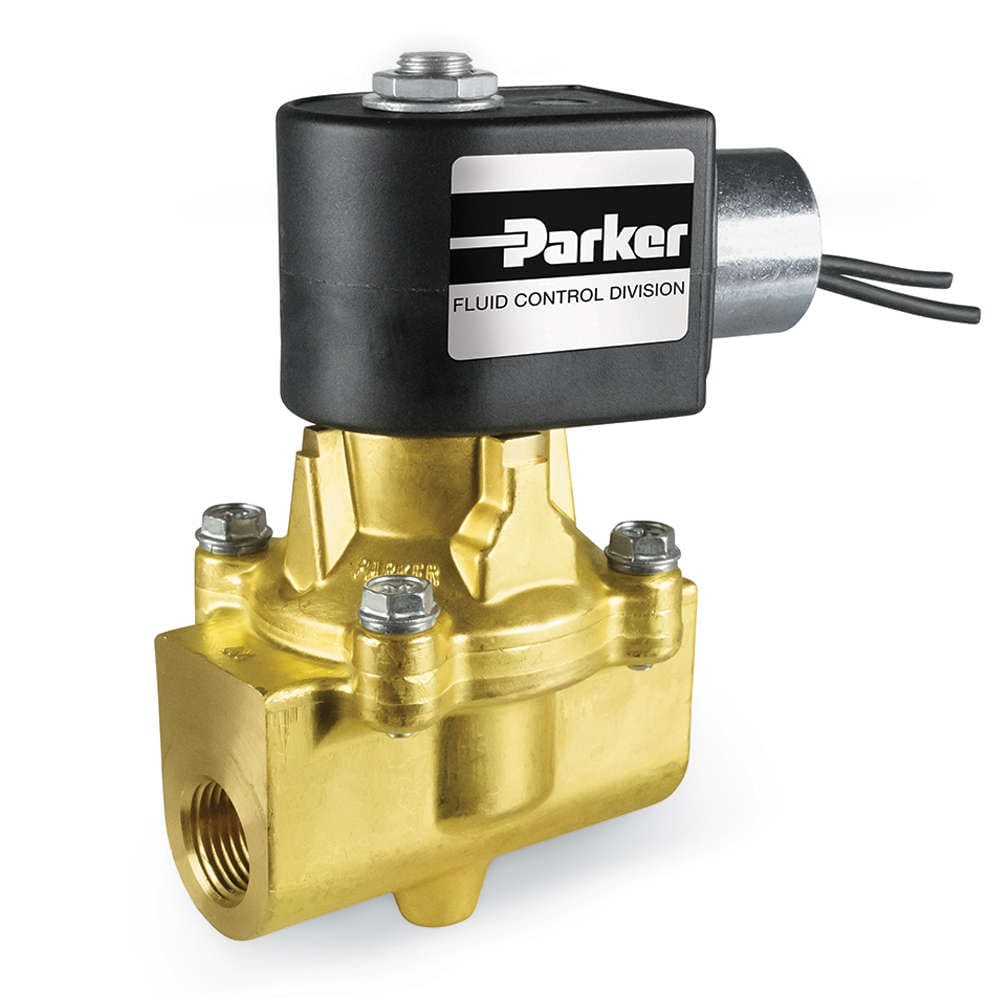

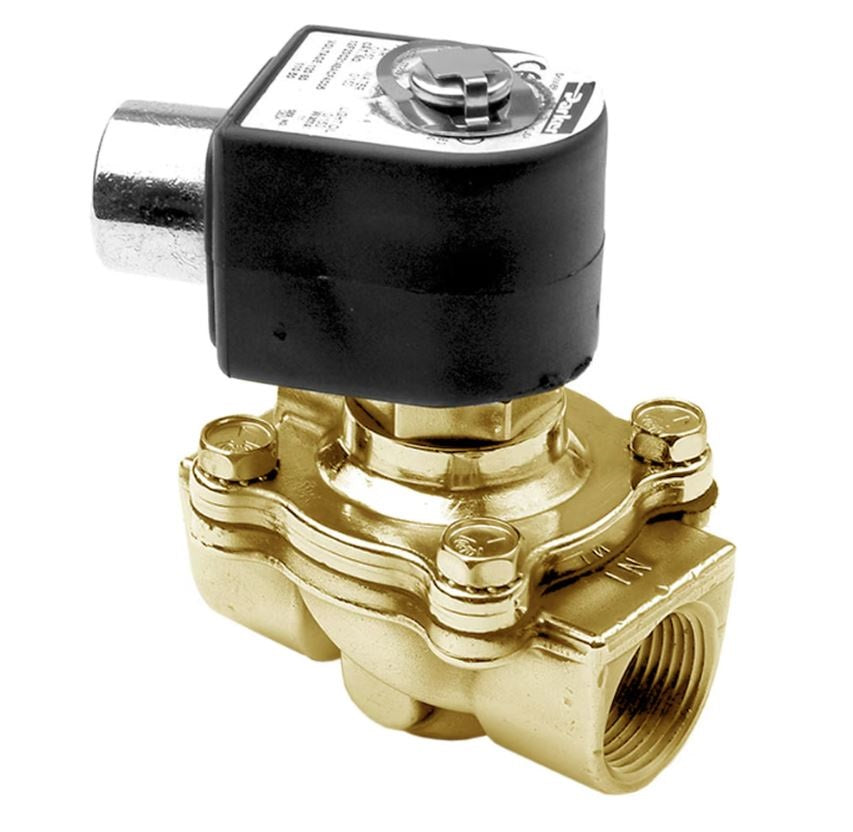

PARKER 12F22C2148A3F4C80 2-Way Solenoid Valve

Product Description

The Parker 12F22C2148A3F4C80 is a two-way solenoid valve suitable for various applications involving air, liquids, and gases. This valve operates in a normally closed position, ensuring safety and precision in fluid control.

• Utilizes a brass body with three-quarter inch NPT ports
• Designed for pressure differentials from five to one hundred psi
• Equipped with NBR seals and a Class F coil

Product Highlights

This solenoid valve is ideal for general-purpose use and delivers reliable performance across different media types.

Product Information

Standard Information

• Valve Type: 2-Way
• Function: Normally Closed

Technical Specifications

• Port Size: 3/4 inch
• Input Voltage: 24.0 VDC
• Body Material: Brass
• Seal Material: NBR
• Power Consumption: 11.5 W
• Maximum Pressure Differential: 100 psi
• Minimum Pressure Differential: 5.0 psi
• Media: General Purpose
• Coil Type: 1/2 NPT Conduit w/ Leads (Including Ground Lead)
• Maximum Fluid Temperature: 180 °F
• Maximum Ambient Temperature: 77.0 °F
• Actuation Type: Internally Piloted
• Port Type: NPT
• Insulation Class: Class F
• Ingress Protection Rating: NEMA 4, 4X
• Main Flow Coefficient: 5.0 Cv
• Orifice Size: 3/4 inch
• Specifications Met: UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC
