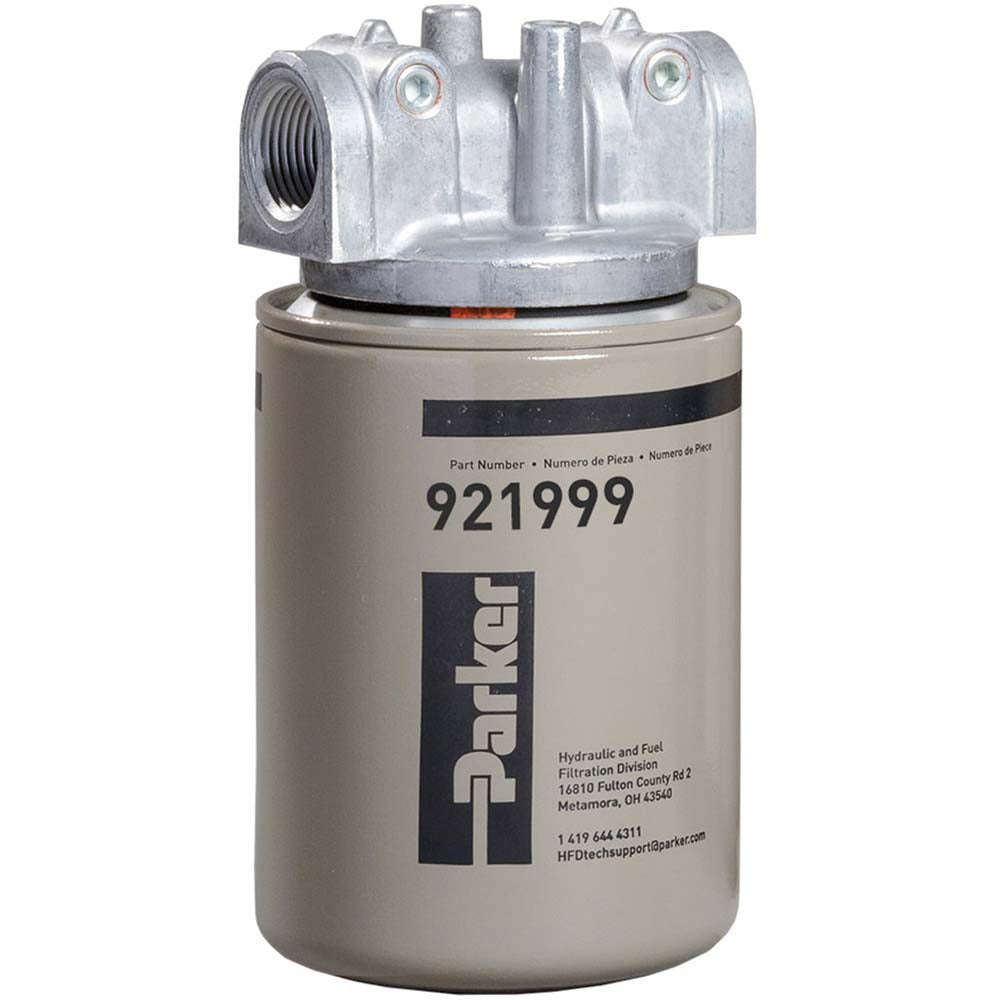

Parker 12AT110CBPGN12H Hydraulic Filter Assembly 10 Micron

Product Description

The PARKER 12AT110CBPGN12H is a hydraulic filter assembly designed to remove particulate contamination from hydraulic fluid circuits. Built with a low carbon steel and aluminum body, it houses a cellulose filter media rated at 10 microns, making it suitable for general-purpose hydraulic filtration where fine particle removal is required. The assembly features a 3/4 inch NPTF threaded port for direct inline installation. It is rated for a maximum operating pressure of 150 psi and handles a temperature range of -40 to 225 degrees F. Nitrile seals provide reliable fluid compatibility across a broad range of petroleum-based hydraulic fluids. This assembly is installed by hydraulic system technicians and maintenance professionals.

This filter assembly is suited for use in industrial and mobile hydraulic systems operating at moderate pressures. It fits inline plumbing configurations where a 3/4 inch NPT port is present. Typical applications include hydraulic power units, machine tool circuits, and mobile equipment hydraulic systems where cellulose media provides cost-effective filtration during normal duty cycles. The compact assembly format allows installation directly in the return or pressure line depending on system design and pressure requirements.

Key Features

• 10 micron cellulose filter media for general-purpose hydraulic fluid filtration
• Low carbon steel and aluminum body construction for durability and weight balance
• 3/4 inch NPTF threaded port for standard inline hydraulic plumbing connections
• Rated to 150 psi maximum operating pressure
• Wide operating temperature range of -40 to 225 degrees F
• Nitrile seal material compatible with petroleum-based hydraulic fluids

Compatibility

Designed as an OEM-style replacement or direct-install hydraulic filter assembly for systems utilizing a 3/4 inch NPT inline filter connection rated at 150 psi or below.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and de-energize the hydraulic system fully before removing or installing any filter assembly. Apply appropriate thread sealant compatible with hydraulic fluid to the NPTF threads and torque to the fitting manufacturer's specification. Verify that system pressure and temperature ratings do not exceed the filter assembly limits before returning the system to service.
