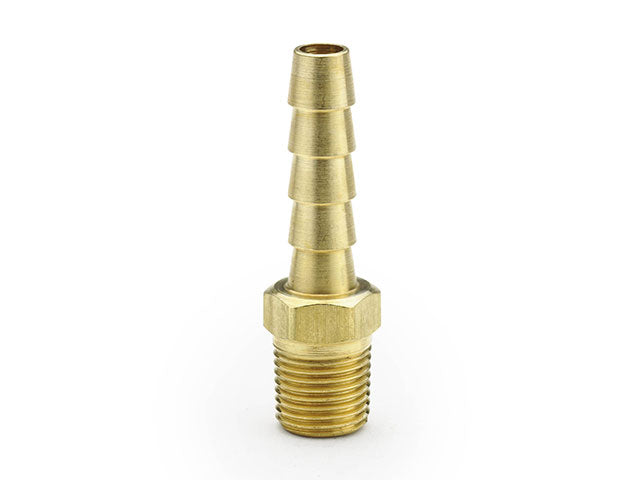

Parker 125HBL-5-2 Hose Barb to Male Pipe

Product Description

The Parker 125HBL-5-2 is a hose barb to male pipe fitting designed for secure connections in various applications. It is constructed from brass and compatible with rubber or thermoplastic hoses. This fitting features a 1/8 NPT thread and a five-sixteenth inch inner diameter. It requires a clamp for effective operation and performance.

• Material: Brass
• Temperature Range: -40°F to +160°F
• Series: Hose Barb

Product Highlights

This hose barb fitting is suitable for piping systems requiring reliable connections, making it ideal for HVAC, plumbing, and fluid transfer tasks.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 125HBL-5-2

Technical Specifications

• Thread 1: 1/8 NPT
• Inner Diameter 1: 5/16 Inch
• Material: Brass
• Configuration Type: Barb to Male
• Configuration Sub-Type: Male Connector
• Operating Temperature: -40°F to +160°F
• Parker Division: Fluid Systems Connector (Brass Products)
• Parker Group: Fluid Connector
