Parker 124380P Thermostatic Expansion Valve

Product Description

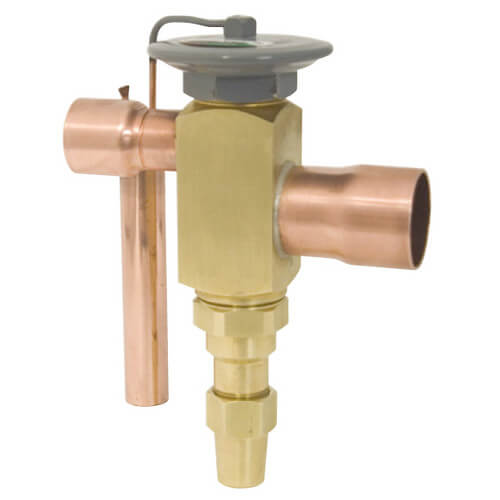

The Parker 124380P is a thermostatic expansion valve suitable for air conditioning and process chiller systems. Its balanced port design allows for efficient performance across varying load conditions. The valve features copper ODF connections along with a removable thermostatic power element. Additionally, it includes a permanent twelve mesh strainer and is externally equalized with a quarter inch ODF connection.

• Balanced port design enhances operation.
• Removable power element for easy maintenance.
• Ideal for air conditioning and process chiller applications.

Product Highlights

This product is built for robustness and ensures smooth operation under a wide range of conditions.

Product Information

Standard Information

• Manufacturer Part Number: 124380P
• Product Type: Thermostatic Expansion Valve

Technical Specifications

• Application: Air Conditioning, Process Chillers, All Purpose
• Inlet Connection: 1-1/8 inch ODF
• Outlet Connection: 1-3/8 inch ODF
• Equalizer Connection Type: Externally Equalized, quarter inch ODF
• Capillary Length: 5 feet
• Refrigerant Type: R-22, R-407C
• Nominal Capacity: 30 ton
• Maximum Operating Pressure: 450 psi
• Strainer Type: Permanent twelve mesh
• Connection Type: ODF
