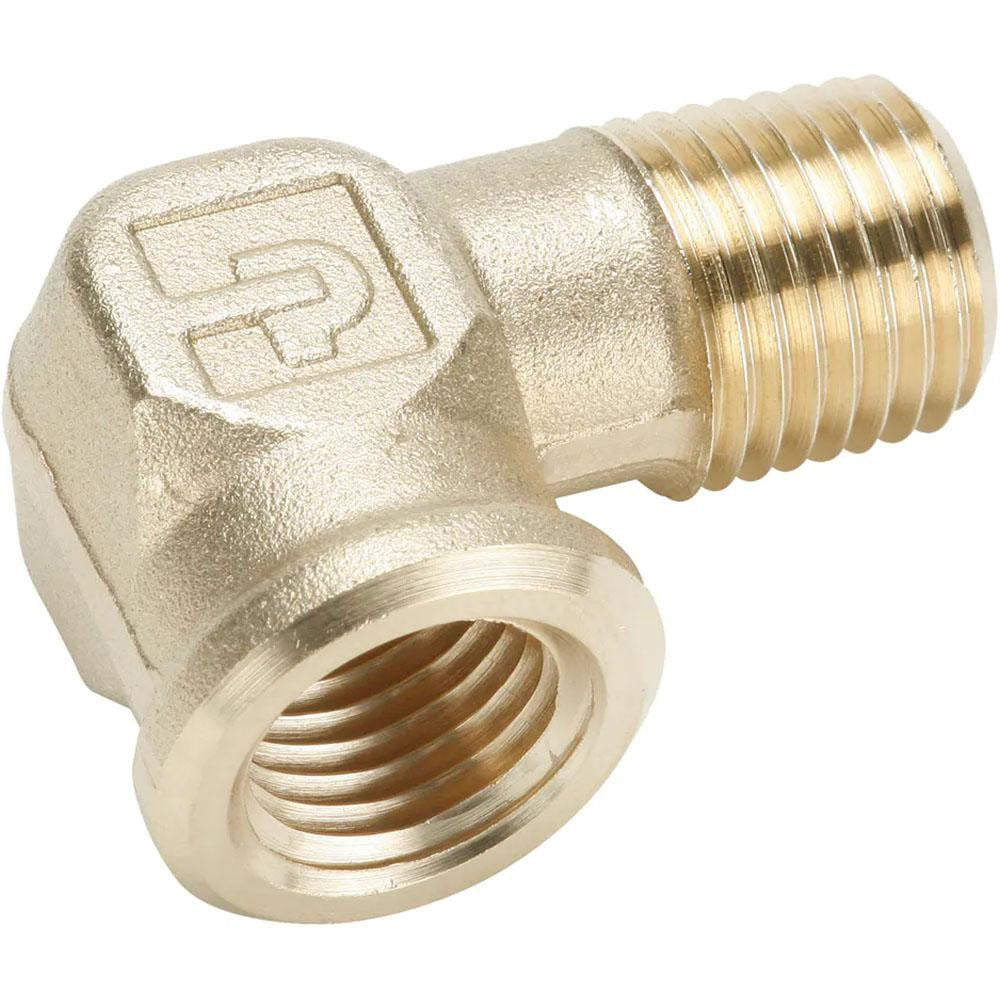

Parker 1202P-6-6 Brass 90 Degree Street Elbow 3/8 in

Product Description

The PARKER 1202P-6-6 is a brass 90-degree street elbow designed for industrial pipe assemblies requiring a compact directional change in a single fitting. It connects a 3/8-inch male NPTF thread to a 3/8-inch female NPTF thread, allowing inline-to-branch transitions without an additional coupling. Rated to 1,000 psi maximum working pressure, this fitting handles demanding fluid and pneumatic system pressures. The brass construction resists corrosion in a wide range of media and maintains integrity across a temperature range of -65 degrees F to 250 degrees F. Licensed plumbers, pipefitters, and HVAC technicians install this fitting in both commercial and industrial settings.

This street elbow is suited for residential and commercial plumbing, pneumatic, and hydraulic line assemblies where a 90-degree turn is needed in tight spaces. The MNPTF x FNPTF configuration lets the fitting thread directly into a pipe or port on the male end while accepting a standard NPT pipe or fitting on the female end. It is a practical choice for compressed air lines, fuel lines, oil systems, and general-purpose fluid transfer applications that fall within the rated pressure and temperature limits.

Key Features

• 90-degree street elbow configuration enables compact directional changes in pipe runs
• Brass construction provides corrosion resistance for fluid and pneumatic applications
• 1,000 psi maximum working pressure rating suits high-demand industrial service
• Rated from -65 degrees F to 250 degrees F for a broad range of operating environments
• MNPTF x FNPTF threads comply with SAE J530 and SAE J531 standards
• 3/8-inch thread size on both male and female ends for consistent line sizing

Compatibility

Designed as an OEM-style replacement or new-installation fitting for industrial pipe systems using 3/8-inch NPTF threaded connections operating within the rated pressure and temperature range.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or qualified technician following applicable codes such as the IPC or IFGC. Depressurize and isolate the line completely before removing or installing any pipe fitting. Apply an appropriate thread sealant rated for the media being conveyed to the male threads before assembly. Do not exceed the rated working pressure or temperature limits of this fitting.
