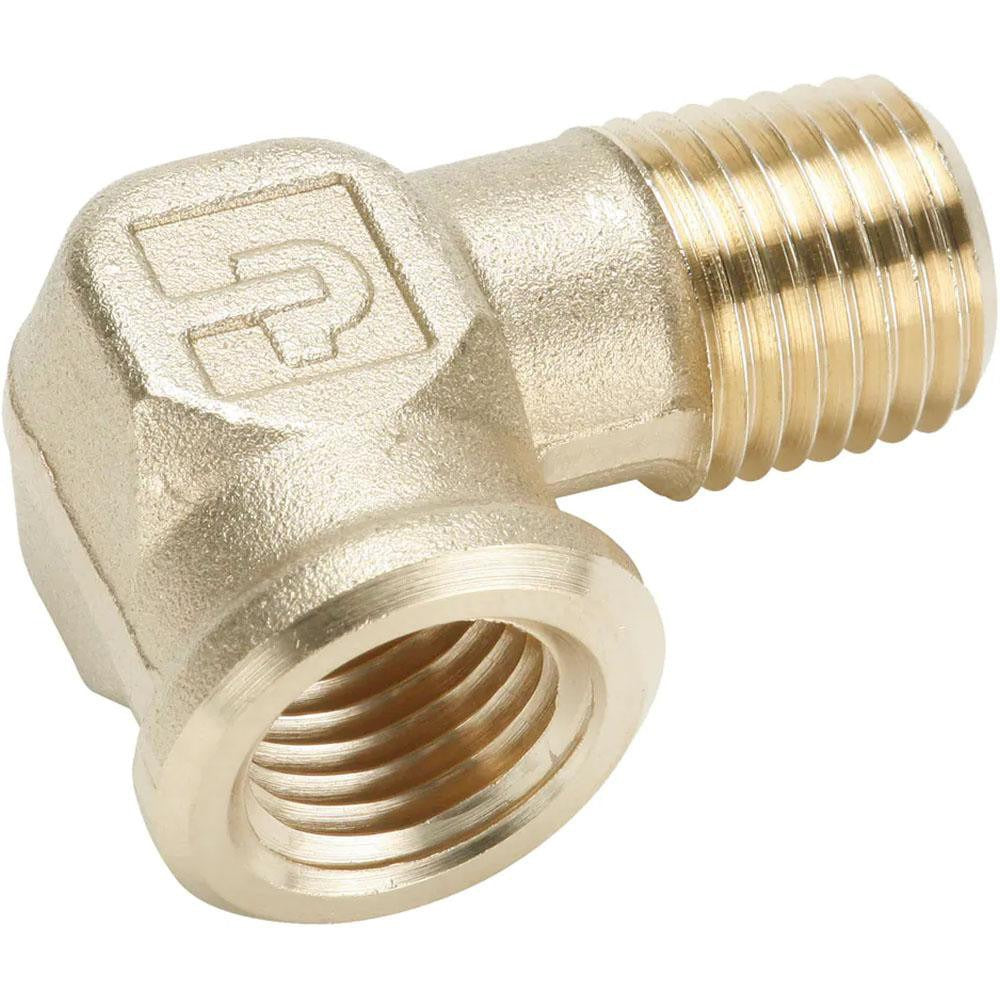

Parker 1202P-4-4 Brass 90 Deg Street Elbow 1/4 in

Product Description

The PARKER 1202P-4-4 is a 90-degree street elbow fitting designed for industrial pipe systems requiring a compact directional change at a single connection point. Constructed from brass, this fitting combines a 1/4 inch male NPT (MNPTF) thread on one end with a 1/4 inch female NPT (FNPTF) thread on the other, allowing a street-style inline turn without the need for an additional coupling. Rated to 1000 psi maximum working pressure and suitable for service between -65 degrees F and 250 degrees F, it is appropriate for hydraulic, pneumatic, fuel, and general fluid-transfer lines. Plumbers, pipefitters, and industrial mechanics install this type of fitting in equipment, panel, and manifold plumbing applications.

This fitting is used in residential and commercial plumbing, HVAC, and light industrial piping where a 90-degree directional change is needed at the end of a threaded male pipe or nipple. The street configuration eliminates a coupler and reduces overall assembly length, making it useful in tight-clearance installations. It is also suitable for fuel-line and hydraulic applications within its rated pressure and temperature range, conforming to SAE J530 and SAE J531 standards.

Key Features

• 90-degree street elbow profile combines male and female NPT threads in a single compact body
• 1000 psi maximum working pressure rating
• Operating temperature range: -65 degrees F to 250 degrees F
• Brass construction resists corrosion in water, fuel, and air service
• Conforms to SAE J530 and SAE J531 standards
• 1/4 inch MNPTF x 1/4 inch FNPTF thread configuration

Compatibility

Designed as an OEM-style replacement or service fitting for 1/4 inch NPT threaded pipe systems in industrial, HVAC, plumbing, and hydraulic applications rated within the 1000 psi working pressure limit.

Installation Notes

Installation is performed by qualified plumbers, pipefitters, or industrial mechanics following applicable codes such as the IPC or IFGC where relevant. Depressurize and isolate the line completely before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male threads per system requirements. Do not overtighten; use a properly sized pipe wrench and back-wrench the mating component to avoid stress on adjacent connections.
