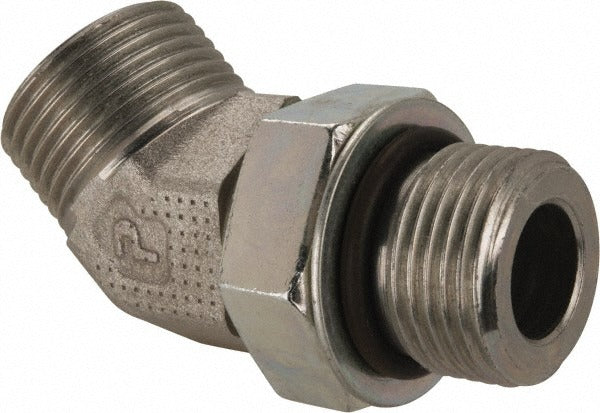

Parker 12 V5OLO-S Male 45 Elbow Fitting 3/4 in Orfs Sae-orb

Product Description

The PARKER 12 V5OLO-S is a compression tube male 45-degree elbow fitting designed for high-pressure hydraulic and fluid power systems. Constructed from zinc-plated steel, it connects a 3/4-inch outside diameter tube on the ORFS (O-Ring Face Seal) end to a 1-1/16-12 UNF SAE-ORB (O-Ring Boss) male port. The ORFS connection style uses a flat seating face and an O-ring to create a leak-free seal, making it well suited for lines operating at pressures up to 6000 psi. This fitting is installed by licensed hydraulic mechanics, fluid power technicians, and plumbing tradespeople working on mobile or industrial equipment.

This fitting is used in residential and commercial hydraulic systems, heavy mobile equipment, and industrial fluid power circuits where a 45-degree directional change is needed between a tube line and a port. It is appropriate for applications requiring a reliable, vibration-resistant seal at elevated working pressures. The SAE-ORB male end threads into a boss port on manifolds, cylinders, pumps, or valves. Compatible tube outside diameter is 3/4 inch.

Key Features

• 45-degree elbow geometry allows directional routing in tight plumbing layouts
• ORFS x SAE-ORB end connections provide dual O-ring sealing at both interfaces
• Zinc-plated steel construction offers corrosion resistance in typical hydraulic environments
• Rated to 6000 psi maximum working pressure for demanding high-pressure circuits
• 1-1/16-12 UNF thread size matches standard SAE-ORB boss port specifications
• Sold individually, no minimum quantity requirement beyond one unit

Compatibility

Designed as an OEM-style replacement fitting for hydraulic and fluid power systems using 3/4-inch OD tube lines terminated with ORFS connections and SAE-ORB boss ports conforming to UNF thread standards.

Installation Notes

This fitting should be installed by a qualified hydraulic or fluid power technician. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Inspect the O-ring sealing surfaces for nicks or contamination before assembly, and verify the O-ring is properly seated before torquing the connection. Follow applicable SAE and equipment manufacturer torque guidelines for the 1-1/16-12 UNF thread size.
