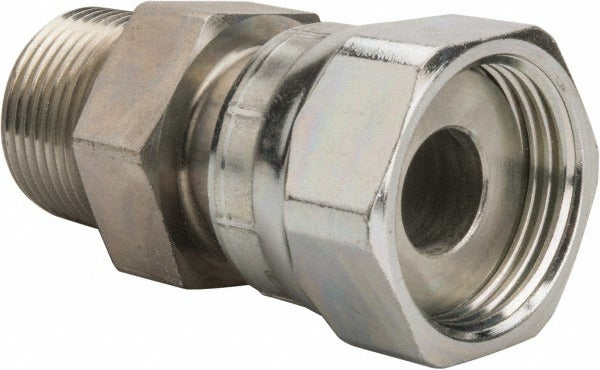

Parker 12 F6L-S Swivel Connector 3/4-14 Nptf Orfs Steel 5500 Psi

Product Description

The PARKER 12 F6L-S is a compression tube pipe thread swivel connector designed for high-pressure hydraulic and fluid system plumbing. It provides a leak-resistant transition between an O-Ring Face Seal (ORFS) tube end and an NPTF pipe thread port, with the swivel feature allowing the tube side to rotate during assembly without twisting the line. Rated to 5500 psi maximum working pressure, this fitting is constructed from steel and suits demanding industrial and mobile hydraulic applications. It is installed by hydraulic technicians, pipefitters, and fluid power specialists working on equipment requiring reliable, vibration-resistant connections.

This connector is used in hydraulic plumbing systems where an ORFS tube connection must mate to an NPTF threaded port. Typical installations include mobile equipment, industrial machinery, and fluid power circuits where pressure integrity and ease of assembly are critical. The 3/4-14 thread size is common in mid- to large-flow hydraulic lines. The swivel design reduces installation stress on tubing and minimizes the risk of cross-threading during make-up.

Key Features

• ORFS x NPTF end connections for leak-resistant port-to-tube transitions
• 5500 psi maximum working pressure rating
• 3/4-14 NPTF thread size for secure, pressure-tight engagement
• Swivel tube end allows rotation during assembly without twisting the hydraulic line
• Steel construction for durability in high-pressure fluid service
• 3/4 inch tube outside diameter compatibility

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and fluid power systems requiring a 3/4-14 NPTF port connection with an ORFS tube end.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the ORFS sealing face and O-ring for damage before assembly, and ensure NPTF threads are clean and free of burrs. Follow applicable fluid power system standards and equipment manufacturer torque and assembly procedures.
