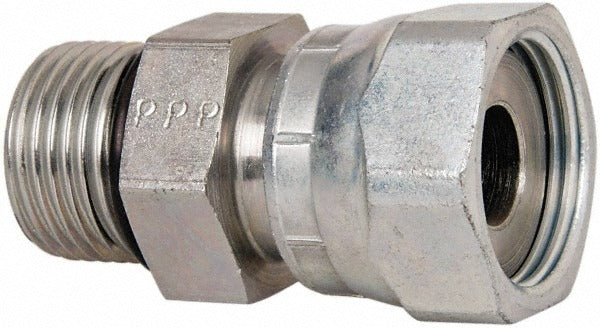

Parker 12 F65OL-S Swivel Connector 1-1/16-12 Orfs Sae-orb

Product Description

The PARKER 12 F65OL-S is a compression tube straight thread swivel connector designed for high-pressure hydraulic and fluid system applications. Built from steel, this fitting features an O-Ring Face Seal (ORFS) tube end paired with an SAE O-Ring Boss (SAE-ORB) port end, providing a leak-resistant connection in demanding service environments. It accepts a 3/4-inch tube outside diameter and carries a maximum working pressure rating of 6000 psi. The swivel design allows the fitting to rotate during assembly, making it easier to align tubing without twisting or stressing the line. This connector is typically installed by hydraulic system technicians, industrial maintenance professionals, and fluid power specialists.

This fitting is suited for use in mobile hydraulic equipment, industrial machinery, and fluid power systems where a straight-thread port connection is required alongside a compression-style tube end. The 1-1/16-12 UNF thread size is a common specification in medium- to high-pressure hydraulic circuits. It is appropriate for both original equipment assembly and field repair or replacement work on systems requiring ORFS-to-SAE-ORB transitions.

Key Features

• Steel construction for strength in high-pressure hydraulic service
• Maximum working pressure of 6000 psi
• ORFS x SAE-ORB end connections for leak-resistant port sealing
• Accepts 3/4-inch tube outside diameter
• 1-1/16-12 UNF straight thread for precise port engagement
• Swivel design simplifies alignment during installation

Compatibility

Designed as an OEM-style replacement or assembly fitting for hydraulic systems requiring a straight thread swivel connector with ORFS tube end and SAE-ORB port connection at 1-1/16-12 UNF thread size.

Installation Notes

Installation should be performed by a qualified hydraulic or fluid power technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the O-ring sealing surfaces for damage prior to assembly and replace the O-ring if any nicks or deformation are present. Refer to applicable industry standards and equipment manufacturer torque guidelines for proper thread engagement on SAE-ORB port connections.
