Parker 12-16 V5OLO-S Male 45 Elbow Fitting 3/4 in Orfs Sae-orb

Product Description

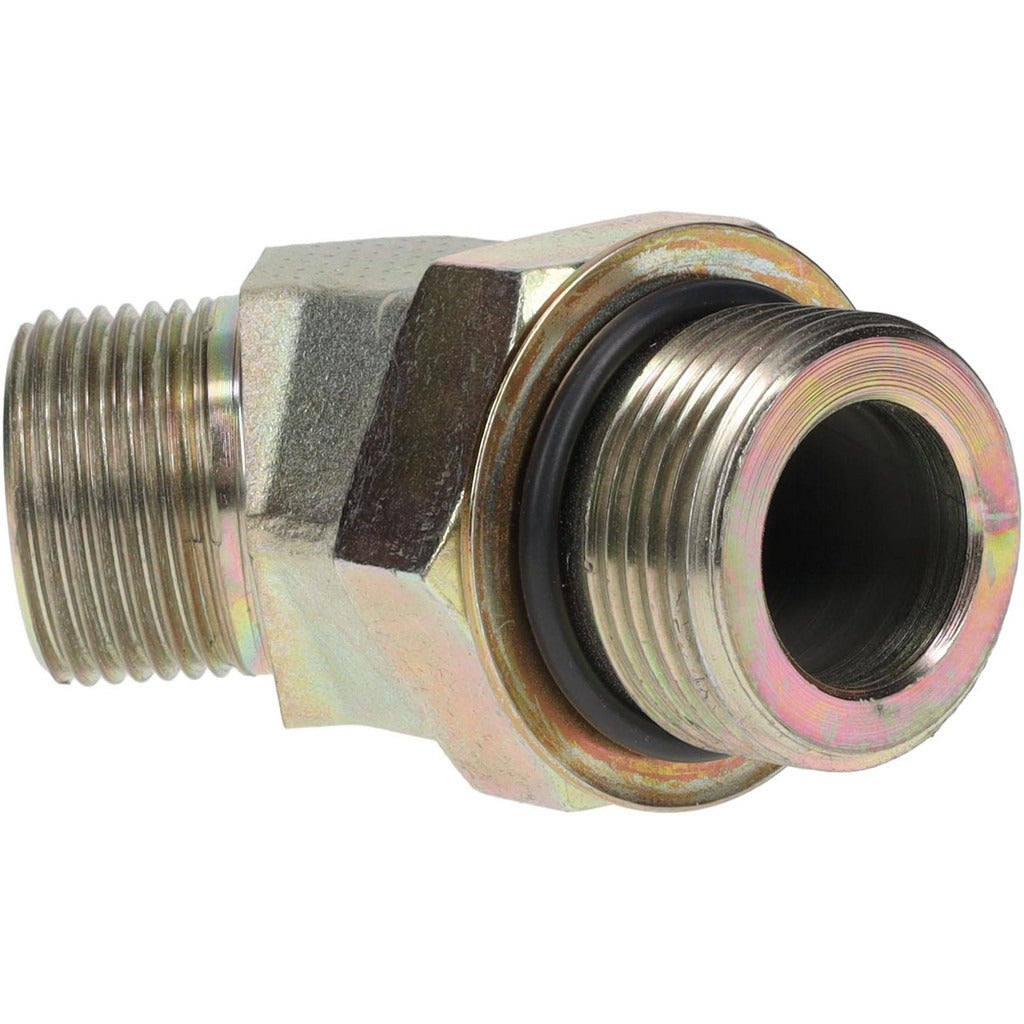

The PARKER 12-16 V5OLO-S is a compression tube male 45-degree elbow fitting designed for high-pressure hydraulic and fluid power systems. Constructed from zinc-plated steel, it connects a 3/4-inch outside diameter tube to a male SAE O-Ring Boss (SAE-ORB) port using an O-Ring Face Seal (ORFS) end connection on the tube side. The 1-5/16-12 UNF thread specification meets standard sizing for this fitting class. With a maximum working pressure rating of 5500 psi, this elbow is suited for demanding hydraulic line routing where a 45-degree angle change is required. Licensed hydraulic technicians and fluid power specialists are the primary installers of this component.

This fitting is used in industrial, mobile, and agricultural hydraulic systems wherever a 45-degree directional change is needed between a tube line and a SAE-ORB ported component such as a pump, valve, cylinder, or manifold. The ORFS end connection provides a leak-free metal-to-metal sealing surface backed by an O-ring, making it a preferred choice in applications where vibration or pressure spikes could compromise standard flare fittings. It is sold individually and packaged as a single unit.

Key Features

• 45-degree male elbow geometry for compact hydraulic line routing
• ORFS x SAE-ORB end connections for leak-resistant sealing at both interfaces
• Maximum working pressure of 5500 psi suitable for high-pressure hydraulic circuits
• 3/4-inch tube outside diameter compatibility with 1-5/16-12 UNF male thread
• Zinc-plated steel construction for corrosion resistance in typical hydraulic environments

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic systems using 3/4-inch OD compression tube lines terminating at SAE-ORB ported components with ORFS connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the O-ring seating surface on the ORFS end for damage or contamination before assembly and replace the O-ring if any deformation is present. Tighten to the fitting manufacturer's recommended torque procedure for the thread size; do not over-tighten, as this can damage the O-ring or sealing face.
