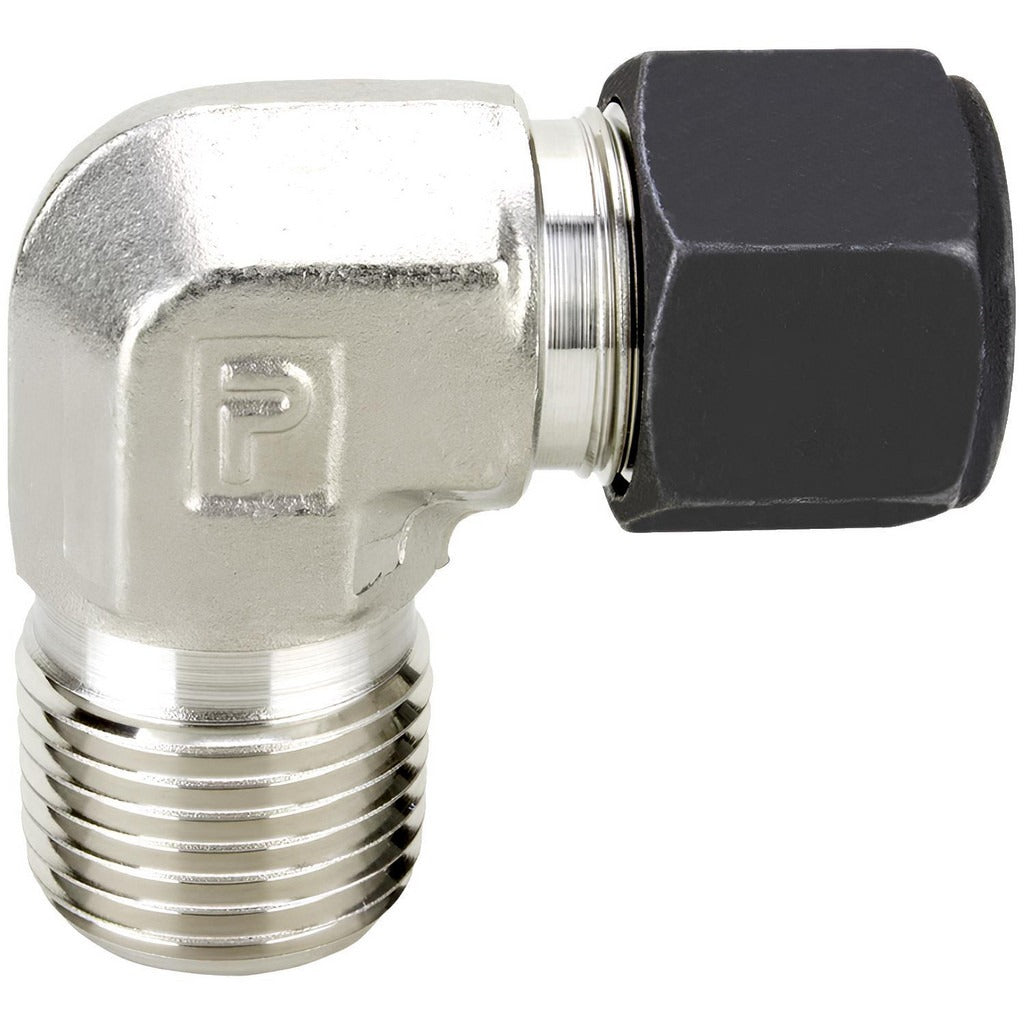

Parker 12-12 Cbz-ss Compression Male Elbow 3/4 in Ss

Product Description

The PARKER 12-12 CBZ-SS is a compression tube male elbow fitting manufactured from stainless steel. It connects 3/4-inch outside diameter tubing to a male NPT threaded port at a 90-degree angle, making a direction change in a pressurized fluid or gas line without requiring a separate adapter. Rated to 5800 psi maximum working pressure, this fitting is built for demanding service in hydraulic, pneumatic, and fluid transfer applications. Installation requires no tube flaring — the compression sleeve grips the tube OD mechanically when the nut is tightened. Plumbers, pipefitters, and industrial maintenance technicians are the typical installers.

This elbow is suited for residential and commercial installations where stainless steel corrosion resistance is required — such as chemical lines, potable water systems, instrumentation tubing, or marine and process environments. The MNPT end threads directly into a female NPT port on a valve, manifold, pump, or equipment housing. The compression end accepts standard 3/4-inch OD tubing. It is a single-piece unit sold individually.

Key Features

• 5800 psi maximum working pressure for high-pressure fluid and gas line service
• Stainless steel construction provides corrosion resistance in wet, chemical, and outdoor environments
• Compression x MNPT end connections allow direct tube-to-threaded-port connection at a 90-degree angle
• No tube flaring required — compression sleeve seats mechanically on the tube OD
• 3/4-inch tube outside diameter connection matches standard tubing sizes

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with standard 3/4-inch OD compression tubing and female NPT threaded ports in fluid and gas piping systems.

Installation Notes

Installation is performed by qualified plumbers or pipefitters following applicable IPC and ASME B31 piping codes. Depressurize and isolate the line completely before disassembly or fitting installation. Apply thread sealant or PTFE tape to the MNPT threads before threading into the female port; do not overtighten the compression nut, as stainless fittings can gall. Verify tubing is cut square, deburred, and fully seated before tightening the compression nut to ensure a leak-free seal.
