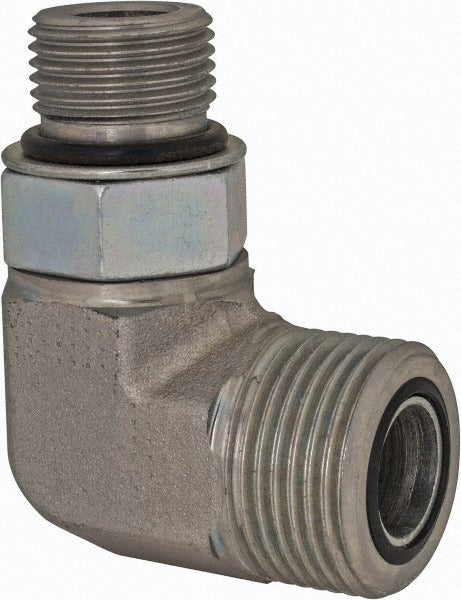

Parker 12-10 C5OLO-S Male Elbow Orfs Sae-orb 3/4 in 6000 Psi

Product Description

The PARKER 12-10 C5OLO-S is a compression tube male elbow fitting designed for high-pressure hydraulic and fluid conveyance systems. It connects a 3/4-inch outside diameter tube to a male SAE O-Ring Boss port using an O-Ring Face Seal interface on the tube end, rated to a maximum working pressure of 6000 psi. Constructed from zinc-plated steel, it resists corrosion in demanding service environments. This fitting is installed by licensed hydraulic technicians, pipefitters, and fluid power specialists working on industrial, mobile, and heavy-duty equipment plumbing circuits.

This elbow fitting is suited for applications requiring a 90-degree direction change in a hydraulic or fluid line where an ORFS tube connection meets an SAE-ORB port. Typical installations include mobile hydraulic equipment, industrial machinery fluid circuits, and high-pressure tube assemblies where leak-free sealing at the face-seal interface is critical. The 7/8-14 UNF thread size is a common standard in SAE-ORB porting found on pumps, valves, manifolds, and cylinders across a wide range of industrial platforms.

Key Features

• 6000 psi maximum working pressure for high-pressure hydraulic service
• O-Ring Face Seal (ORFS) tube end provides reliable, leak-resistant connection
• SAE-ORB male thread end at 7/8-14 UNF for direct port installation
• 3/4-inch tube outside diameter compatibility
• Zinc-plated steel construction for corrosion resistance in industrial environments
• 90-degree male elbow geometry for compact routing in tight spaces

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and fluid power systems using ORFS tube connections and SAE-ORB ported components, with a 3/4-inch tube OD and 7/8-14 UNF thread standard.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter. Depressurize and isolate the hydraulic circuit fully before disassembly or fitting installation. Inspect the O-ring seating face for damage before assembly and ensure the O-ring is properly seated and lubricated prior to torquing. Follow applicable SAE and IFGC standards for fitting torque procedures and use calibrated hand tools rated for the connection size.
