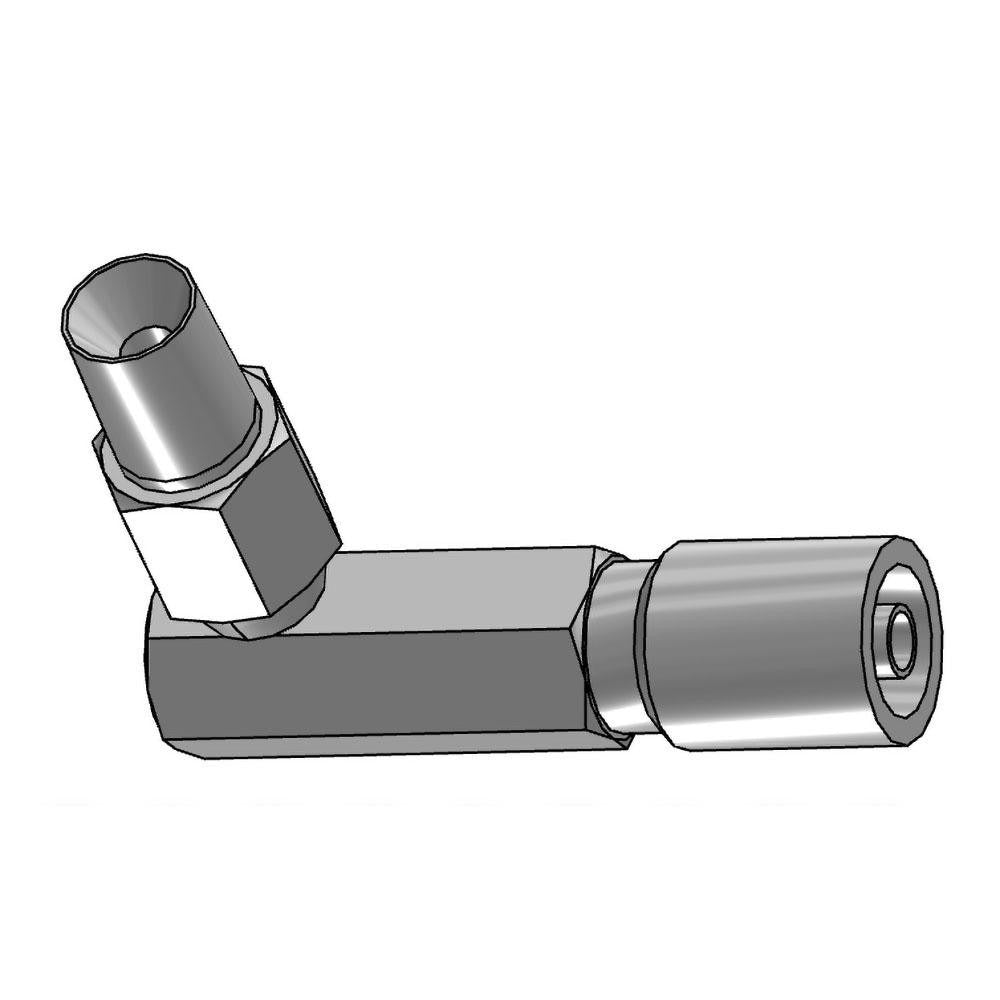

Parker 11L43-4-4 Nptf Swivel Elbow 90 Deg 0.25 in Id

Product Description

The PARKER 11L43-4-4 is a male NPTF pipe swivel elbow fitting designed for hydraulic hose assemblies. Built from steel with a 90-degree elbow shape, it connects hydraulic hose to threaded port locations where a right-angle transition is required. The fitting features a 0.25 inch (1/4 inch) hose inside diameter and a 1/4 inch NPTF threaded shaft, making it a standard size-4 hose fitting in the Parker Series 43 lineup. Hydraulic technicians and fluid power mechanics install this type of swivel elbow when routing hose around obstructions or reducing stress on the hose end at the port connection.

This fitting is suited for mobile hydraulic systems, industrial machinery, and fluid power circuits where a 90-degree hose-to-port connection is needed. It is rated for use in assemblies requiring a leak-free NPTF thread engagement. The swivel design allows the hose to be positioned after assembly without twisting the hose body, which is particularly useful in tight routing situations common in agricultural equipment, construction machinery, and plant hydraulics.

Key Features

• 90-degree elbow shape for right-angle hose routing
• Male NPTF threaded shaft for dry-seal thread engagement
• Swivel design allows hose positioning after assembly without hose twist
• Steel construction for durability in hydraulic service
• Size-4 fitting with 0.25 inch (1/4 inch) hose inside diameter
• Parker Series 43 fitting for broad hose series compatibility

Compatibility

Compatible with Parker hose series 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Relieve all hydraulic system pressure and depressurize the reservoir before disconnecting or installing any fitting. NPTF dry-seal threads require proper thread engagement to achieve a leak-free seal without additional sealant, though thread sealant compatible with the hydraulic fluid may be used per system requirements. Inspect threads for damage before assembly and avoid cross-threading.
