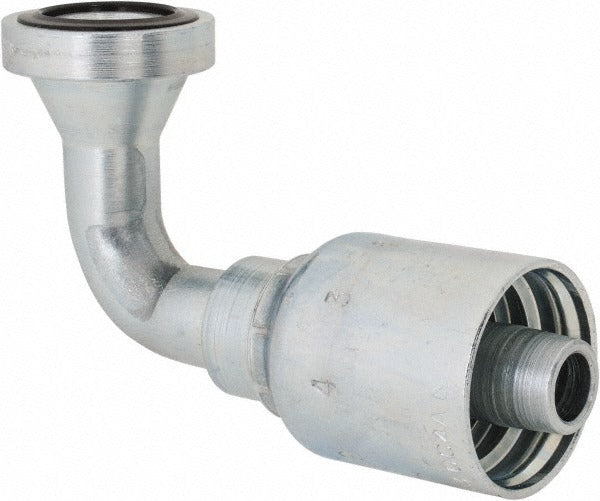

Parker 11943-8-8 Sae Code 61 Flange Head Elbow Fitting

Product Description

The PARKER 11943-8-8 is a 90-degree SAE Code 61 flange head elbow fitting designed for use with hydraulic hose assemblies in high-pressure fluid power systems. Manufactured from steel with a threaded connection type, this fitting accepts a 0.5-inch inside diameter hose and uses a 1/2-inch thread size. It is engineered to meet ISO 12151-3-E90S-L standards, making it suitable for demanding hydraulic installations where leak-free performance at the hose-to-port interface is critical. Hydraulic technicians and fluid power specialists install this fitting when routing hose lines require a 90-degree directional change at an SAE Code 61 flanged port.

This fitting is intended for use in mobile equipment, industrial machinery, and other hydraulic systems where SAE Code 61 four-bolt flange connections are specified. The 90-degree elbow configuration is commonly used when plumbing space is restricted or when hose routing must avoid interference with adjacent components. It belongs to Parker Series 43 and is rated for use with a wide range of Parker hydraulic hose series. Note that this product is subject to California Proposition 65 warnings.

Key Features

• 90-degree elbow geometry for space-constrained hydraulic routing
• SAE Code 61 flange head connection meets ISO 12151-3-E90S-L standard
• Steel construction for high-pressure hydraulic service
• 0.5-inch hose inside diameter with 1/2-inch thread size
• Parker Series 43 fitting compatible with multiple Parker hose families
• California Proposition 65 compliant labeling required

Compatibility

Designed for use with Parker 187 TC ST, 302, 304, 387 TC ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC ST, 722 TC ST, 787 TC ST, 797 TC ST, and 881 hose series.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before disconnecting or assembling any hose fittings. Verify that mating flange ports and bolt patterns conform to SAE Code 61 specifications before assembly. Follow the fitting and hose manufacturer assembly instructions for proper torque procedures and thread engagement to maintain a leak-free connection.
