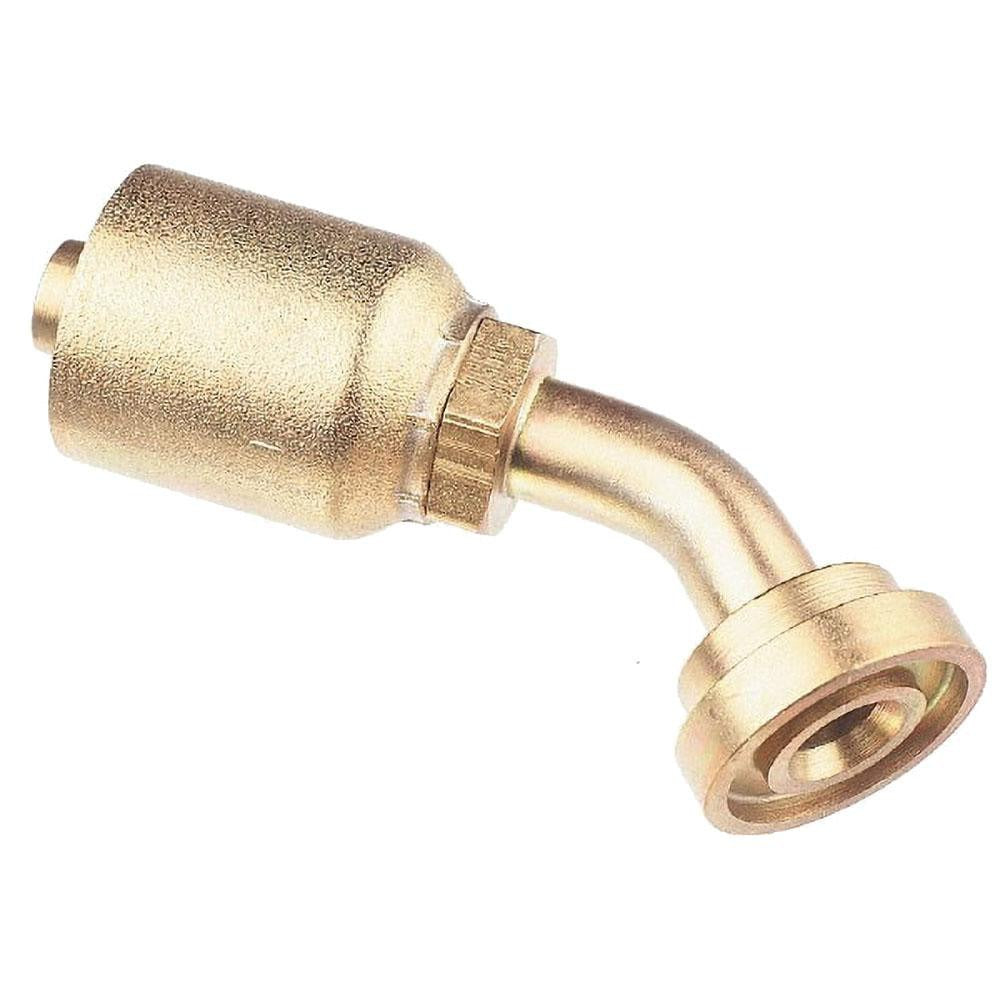

Parker 11743-8-8 Sae Code 61 Flange Head Elbow 0.5 in

Product Description

The PARKER 11743-8-8 is a 45-degree SAE Code 61 flange head elbow fitting designed for use with high-pressure hydraulic hose assemblies. Constructed from steel, this threaded elbow connects hose to flange-ported equipment at a 45-degree angle, reducing strain on the hose and allowing routing in tight or angled installations. It is sized for 0.5-inch inside diameter hose with a 1/2-inch thread size and falls within Parker's Series 43 product line. This fitting is installed by hydraulic system technicians and fluid power mechanics working on mobile or industrial equipment.

This fitting is suited for hydraulic systems requiring SAE Code 61 flange connections where a straight connection is impractical. The 45-degree elbow geometry is commonly used in mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic power units. It is compatible with a broad range of Parker hose series where flange-end terminations are required. The steel construction handles the mechanical and pressure demands typical of these environments.

Key Features

• 45-degree elbow geometry reduces hose stress and improves routing in confined spaces
• SAE Code 61 flange head design for high-pressure hydraulic applications
• Steel construction for durability in demanding hydraulic environments
• 1/2-inch thread size with 0.5-inch hose inside diameter
• Meets ISO 12151-3-E45S-L dimensional and performance standards
• Parker Series 43 fitting for broad hose compatibility

Compatibility

Rated for use with Parker 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hose series.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and fully relieve hydraulic system pressure before removing or installing any fitting. Ensure mating flange surfaces are clean and undamaged before assembly. Torque the flange bolts evenly in a cross pattern to the equipment manufacturer's specification using the appropriate hydraulic fitting tools.
