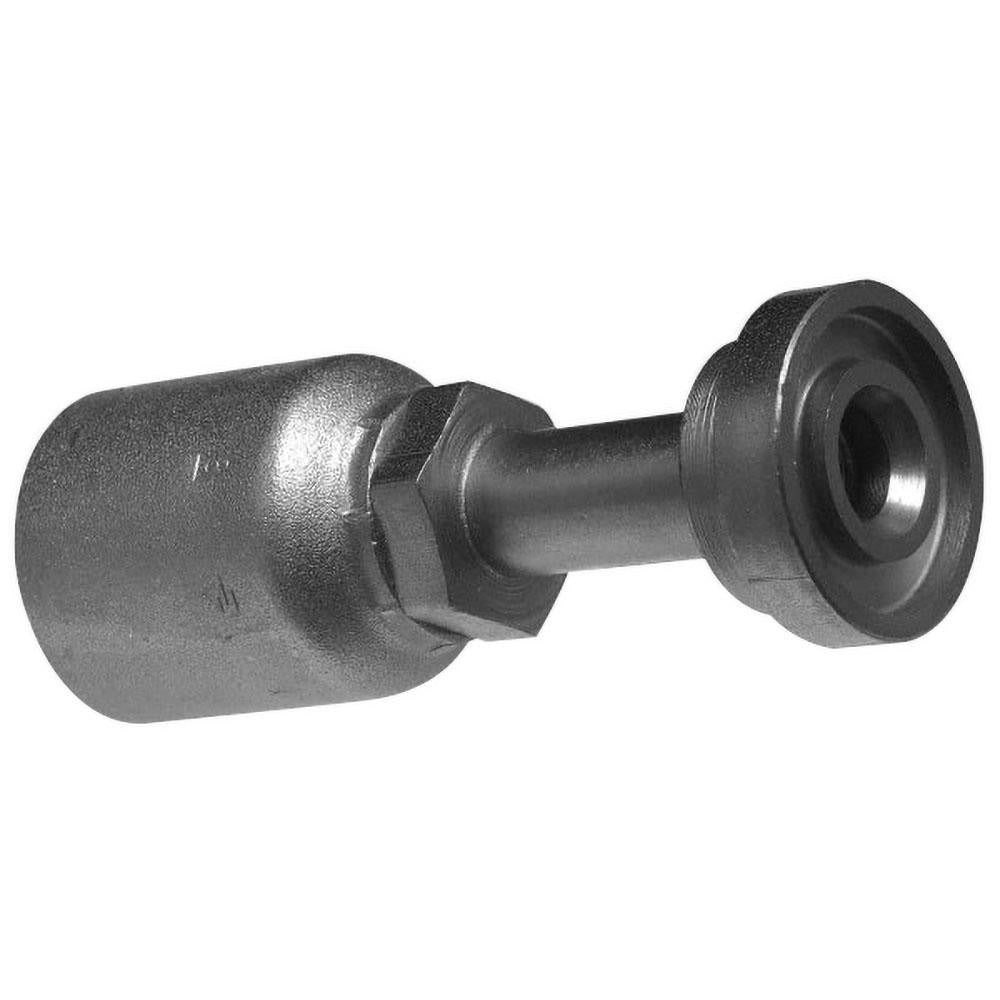

Parker 11543-12-12 Sae Code 61 Flange Head Hose Fitting

Product Description

The PARKER 11543-12-12 is a straight SAE Code 61 flange head fitting designed for use with high-pressure hydraulic hose assemblies. Machined from steel and threaded at 3/4 inch, this fitting accepts hose with a 0.75 inch inside diameter (size 12) and measures 3.54 inches overall in length. It is used to create secure, leak-resistant connections at hydraulic system ports and hose ends in mobile and industrial hydraulic circuits. Installation is typically performed by hydraulic system technicians and fluid power specialists working on equipment where SAE Code 61 flange connections are specified.

This fitting is suited for use on medium- to high-pressure hydraulic hose assemblies in industrial and mobile equipment applications. The straight body geometry makes it a direct, in-line connection option where hose routing allows a 0-degree transition at the port or hose end. It is rated for use with a broad range of Parker hose series, making it a widely applicable component for field and shop assembly work.

Key Features

• SAE Code 61 flange head configuration for high-pressure hydraulic port connections
• 0.75 inch (size 12) hose inside diameter compatibility
• 3/4 inch threaded connection for secure, leak-resistant assembly
• Straight body shape for direct in-line hose routing
• Steel construction for durability in demanding hydraulic environments
• Conforms to ISO 12151-3-S-L dimensional and performance standards

Compatibility

Designed for use with Parker hose series 187 TC ST, 302, 304, 387 TC ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC ST, 722 TC ST, 787 TC ST, 797 TC ST, and 881 hoses.

Installation Notes

This fitting is installed by qualified hydraulic technicians or fluid power specialists. Before assembly, depressurize and isolate the hydraulic circuit completely and clean all mating surfaces. Use proper hydraulic fitting assembly tools and follow SAE and ISO torque and assembly procedures for Code 61 flange connections. Do not reuse fittings that show signs of deformation, thread damage, or corrosion.
