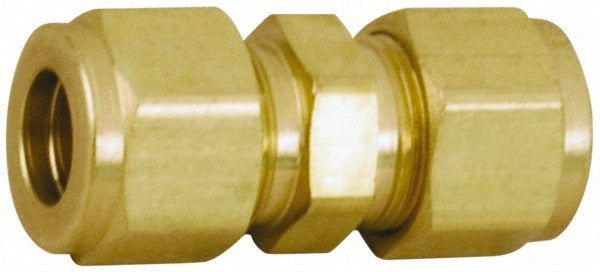

Parker 10SC10-B Compression Tube Union Brass

Product Description

The PARKER 10SC10-B is a compression tube union designed to join two compression-end tube lines in a single inline fitting. Constructed from brass meeting ASME-SB75 and ASTM-B75 standards, this union provides a reliable, leak-resistant connection suitable for fluid and gas systems operating at pressures up to 2000 psi. At 2.05 inches in overall length, the fitting is compact enough for tight plumbing runs. Licensed plumbers, pipefitters, and instrumentation technicians are the typical installers for this type of fitting in both industrial and commercial applications.

This compression union is suited for use in hydraulic lines, instrumentation tubing, pneumatic circuits, and general-purpose fluid distribution systems where a union connection is required. The compression-by-compression end configuration allows the fitting to connect two tube ends without soldering or threading, making it practical for installations that require future serviceability or line disassembly. It is commonly used in light industrial, process, and OEM equipment plumbing.

Key Features

• Compression x compression end connections for tool-free tube joining without soldering or threading
• Brass construction conforming to ASME-SB75 and ASTM-B75 standards
• Maximum working pressure of 2000 psi
• Overall length of 2.05 inches for compact inline installation
• Union configuration allows line disassembly without cutting tubing

Compatibility

Designed as an OEM-style compression tube union for use in compression-fitting tubing systems. Cross-references to Swagelok part number B-1010-6 where applicable per supplier data.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable plumbing and pressure-piping codes. Shut off and depressurize the system completely before removing or installing any fitting. Compression fittings require proper tube preparation including a clean, square cut and deburring before seating. Do not overtighten the compression nut, as this can deform the ferrule and compromise the seal.
