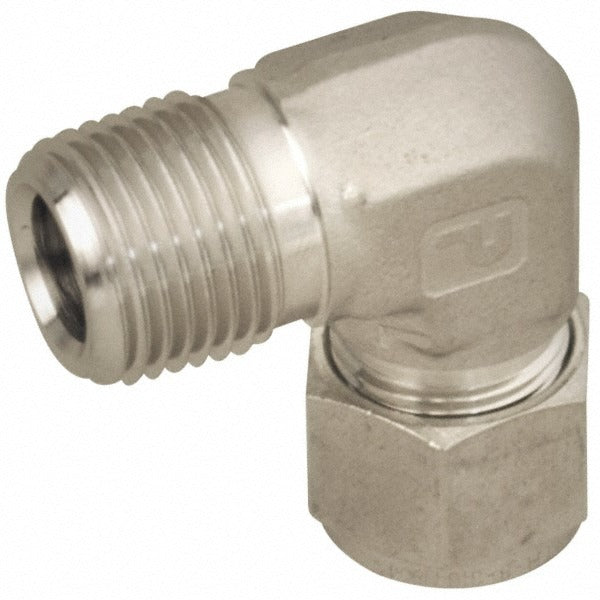

Parker 10MSEL12N-316 Compression Male Elbow 3/4-14 Npt Ss

Product Description

The PARKER 10MSEL12N-316 is a stainless steel compression tube male elbow designed to connect compression tubing to a male NPT-threaded port at a 90-degree angle. Rated for a maximum working pressure of 6100 psi and a temperature range of -425 degrees F to 1200 degrees F, this fitting is built for demanding fluid and gas handling applications. The 3/4-14 NPT thread size and compression-to-MNPT end configuration make it a reliable choice for high-pressure instrumentation, process, and industrial tubing systems. Licensed plumbers, pipefitters, and instrumentation technicians are the typical installers for this type of fitting.

This fitting is suited for high-pressure and extreme-temperature service across industrial, petrochemical, hydraulic, and instrumentation applications. The 316 stainless steel construction resists corrosion in aggressive media and harsh environments. It is appropriate for both residential process lines and heavy commercial or industrial systems where NPT-threaded connections interface with compression tubing runs. The compression-by-MNPT configuration simplifies connections at equipment ports, valves, or manifolds that accept male NPT threads.

Key Features

• Maximum working pressure of 6100 psi for high-pressure service
• Wide temperature range: -425 degrees F to 1200 degrees F
• 316 stainless steel construction for corrosion resistance in aggressive media
• 3/4-14 NPT thread standard for reliable sealing at male pipe ports
• Compression x MNPT end connections for tubing-to-pipe-thread transitions
• Compact elbow geometry routes tubing at 90 degrees in space-constrained installations

Compatibility

Designed as an OEM-style compression tube male elbow for high-pressure instrumentation and process piping systems using 3/4-14 NPT-threaded ports and compatible compression tubing.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or qualified instrumentation technician in accordance with applicable codes such as the IPC or ASME B31.3 process piping standard. Depressurize and isolate the system completely before disassembly or fitting installation. Hand-tighten the compression nut before applying wrench torque to avoid cross-threading, and apply appropriate thread sealant or PTFE tape to the NPT male threads per project specifications. Do not exceed the rated working pressure or temperature limits for the connected tubing and system components.
