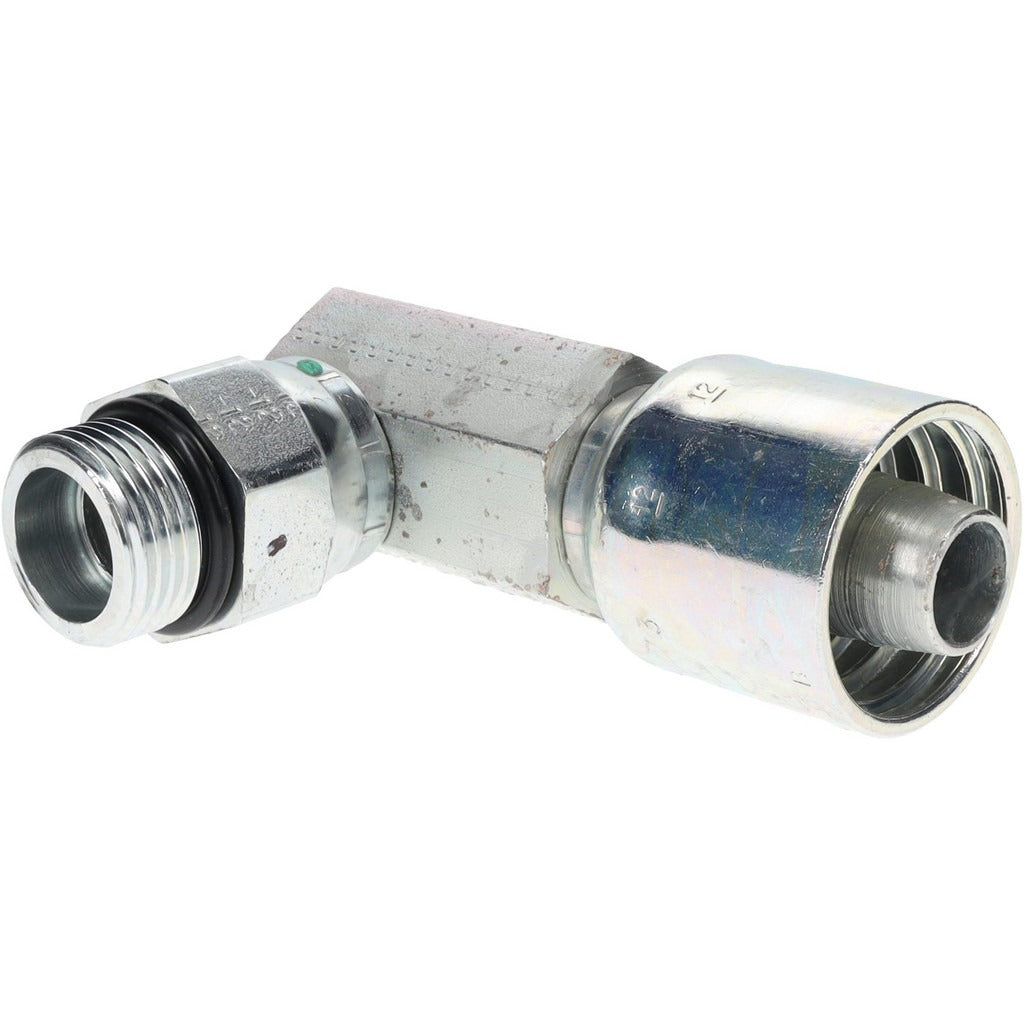

Parker 10L43-12-12 Female Jic 37 Swivel Fitting 3/4 in

Product Description

The PARKER 10L43-12-12 is a female JIC 37-degree swivel hose fitting designed for hydraulic fluid conveyance in high-pressure hose assemblies. Constructed from steel with a male SAE shaft and threaded connection type, this fitting terminates in a 90-degree elbow configuration. It is sized for a 0.75 inch inside diameter hose with a 3/4 inch thread size, matching hose size 12 in the Parker Series 43 lineup. Licensed hydraulic technicians and fluid power specialists install this fitting when routing hose assemblies around obstructions or making angular connections in tight equipment compartments.

This fitting is suited for use in industrial and mobile hydraulic systems where a 90-degree elbow transition is required between the hose and a fixed port or manifold. The JIC 37-degree flare interface provides a reliable metal-to-metal seal commonly specified in agricultural, construction, and industrial machinery applications. It is intended for installation on hose size 12 assemblies and is compatible with the Parker hose series listed below.

Key Features

• Female JIC 37-degree swivel interface with male SAE shaft for secure metal-to-metal sealing
• 90-degree elbow shape simplifies routing in confined or angled installation spaces
• 0.75 inch (hose size 12) inside diameter matches a wide range of Parker Series 43 hoses
• Steel construction for durability in demanding hydraulic service environments
• Threaded connection type provides straightforward assembly and disassembly during service
• Single-piece packaging with a minimum order quantity of one for easy replacement procurement

Compatibility

Rated for use with Parker hose series 187 TC ST, 302, 304, 387 TC ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC ST, 722 TC ST, 787 TC ST, 797 TC ST, and 881 hoses in hose size 12.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic system specialist. Depressurize and isolate the hydraulic circuit completely before disassembling any hose end or fitting. Use appropriate hose crimping or assembly tooling per the hose and fitting manufacturer guidelines, and verify that thread engagement and swivel rotation are correct before returning the system to service. Follow applicable industry standards for hydraulic hose assembly torque and inspection procedures.
