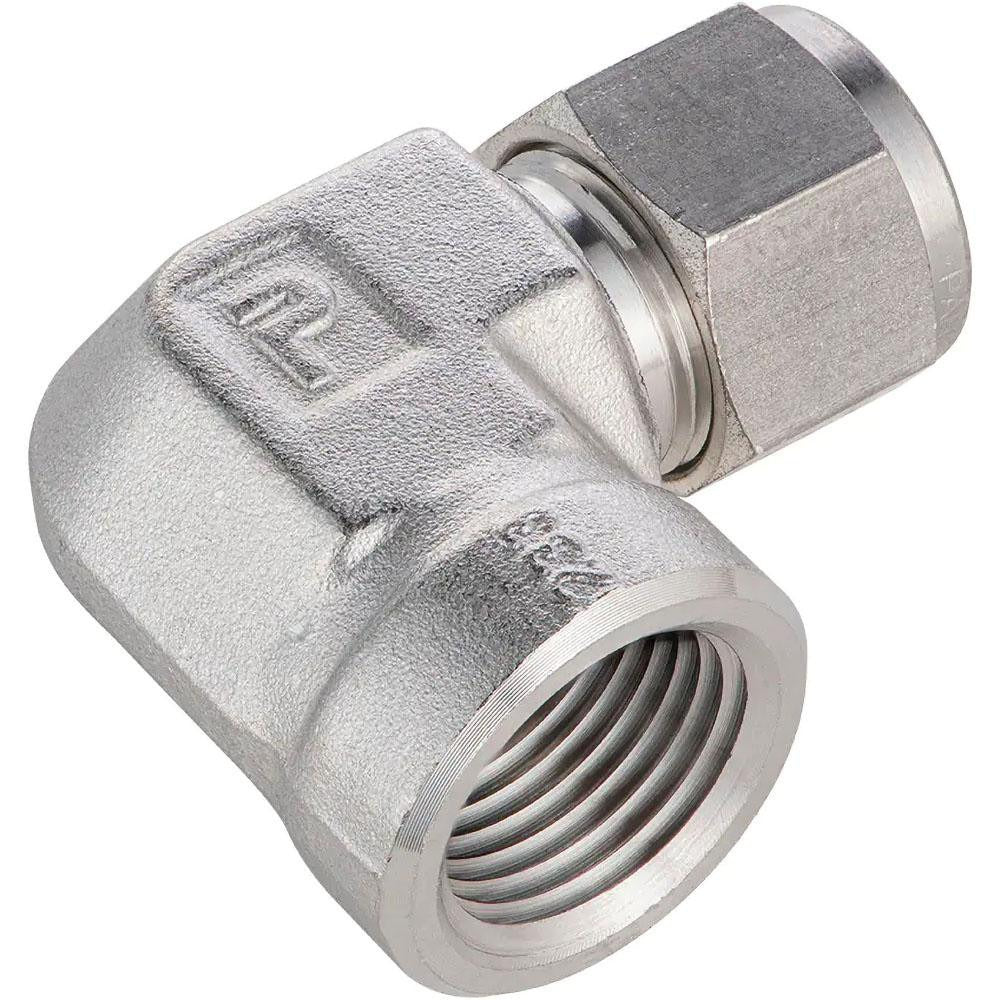

Parker 10FEL8N-316 Compression Female Elbow 1/2-14 Npt Ss

Product Description

The PARKER 10FEL8N-316 is a stainless steel compression tube female elbow fitting designed to connect compression tubing to a female NPT threaded port at a 90-degree angle. It carries a 1/2-14 NPT thread size with Compression x FNPT end connections. Rated to 6100 psi maximum working pressure and a temperature range of -425 degrees F to 1200 degrees F, this fitting is built for demanding fluid and gas service applications. Licensed plumbers, pipefitters, and instrumentation technicians install this fitting in high-pressure and high-temperature process lines, hydraulic systems, and instrumentation tubing runs where a reliable directional change is required.

This fitting is suited for industrial, commercial, and process instrumentation applications where stainless steel is required for corrosion resistance or compatibility with aggressive media. The Compression x FNPT configuration allows a compression tube connection on one end and a female NPT threaded connection on the other, making it a common transition fitting in fluid control and instrumentation systems. It is appropriate for both gas and liquid service within its rated pressure and temperature limits.

Key Features

• 6100 psi maximum working pressure for high-pressure service
• Wide temperature range: -425 degrees F to 1200 degrees F
• Stainless steel construction for corrosion resistance and durability
• 1/2-14 NPT thread size with Compression x FNPT end connections
• 90-degree female elbow configuration for directional tube routing
• Sold as a single unit with no minimum order requirement beyond one piece

Compatibility

Designed as an OEM-style compression tube fitting for use in high-pressure instrumentation, hydraulic, and process piping systems requiring a 1/2-14 NPT female threaded port and a compression tube connection.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or instrumentation technician familiar with compression fitting assembly and NPT thread sealing practices. Depressurize and isolate the line completely before removing or installing any fitting. Apply an appropriate thread sealant to the NPT male threads in accordance with system media compatibility requirements. Do not over-tighten the compression nut; follow the fitting manufacturer's recommended assembly procedure for compression connections to avoid damage to the ferrule or tubing.
