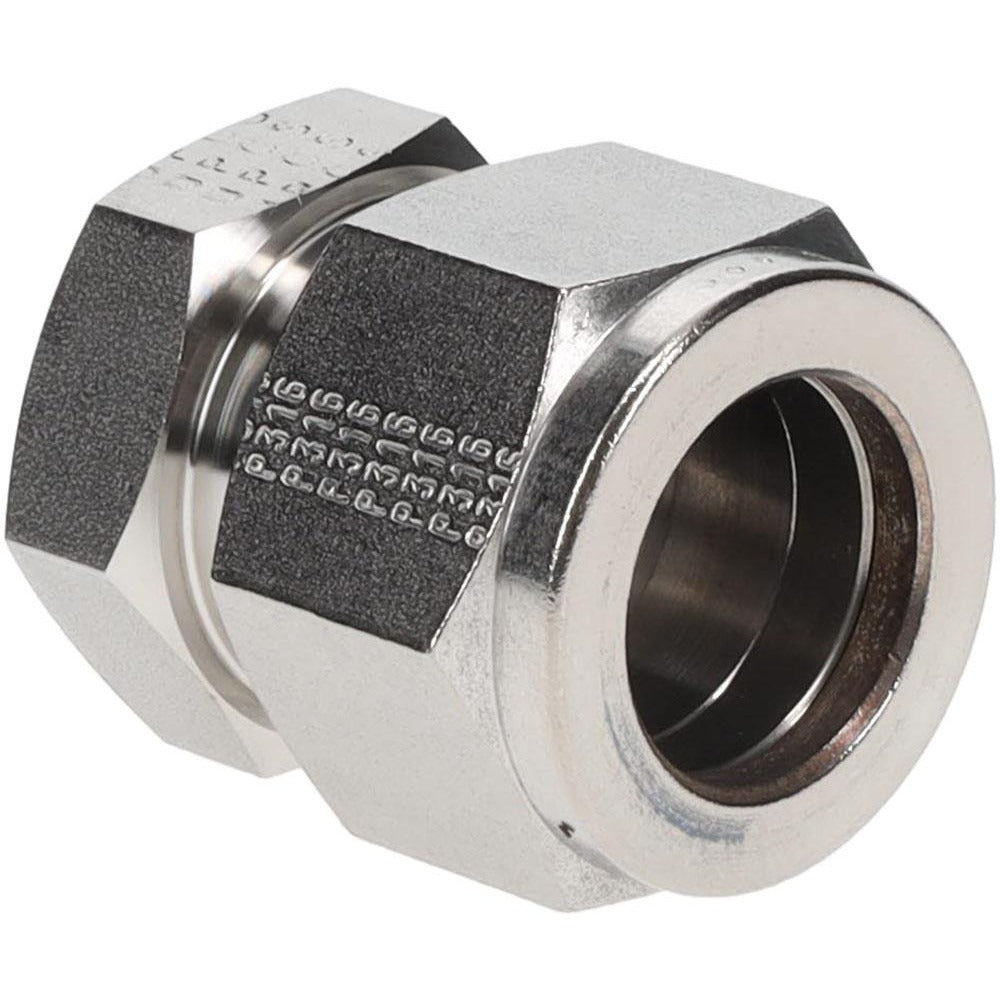

Parker 10BLEN10-316 Compression Tube End Cap 5/8 Od Ss

Product Description

The PARKER 10BLEN10-316 is a compression-style tube end cap designed to seal the open end of a 5/8-inch outside-diameter tube. Constructed from 316 stainless steel, this fitting handles extreme pressure ratings up to 6100 psi and an exceptionally wide temperature range spanning -425 degrees F to 1200 degrees F. It uses a compression end connection with a 7/8-20 thread to create a reliable, leak-free seal without welding or soldering. Licensed plumbers, pipefitters, and instrumentation technicians are the typical installers of this fitting in high-demand service environments.

This end cap is suited for use in hydraulic, pneumatic, instrumentation, and process fluid systems where stainless steel construction and high-pressure rating are required. Its wide temperature tolerance makes it appropriate for cryogenic applications at the low end and high-temperature process lines at the upper end. Typical installations include chemical processing, oil and gas instrumentation tubing, and industrial hydraulic circuits where tube termination must withstand aggressive operating conditions.

Key Features

• Compression end connection for tool-assisted, no-weld tube termination
• 316 stainless steel construction for corrosion resistance in harsh environments
• Maximum working pressure of 6100 psi for high-pressure service
• Temperature range of -425 degrees F to 1200 degrees F covers cryogenic and high-heat applications
• 7/8-20 thread size with NPT thread standard
• Fits 5/8-inch outside-diameter tubing

Compatibility

Designed as an OEM-style compression fitting end cap for 5/8-inch outside-diameter tubing in high-pressure instrumentation and process piping systems.

Installation Notes

Installation should be performed by a qualified pipefitter or instrumentation technician following applicable piping codes. Depressurize and isolate the line completely before removing or installing any compression fitting. Use the correct tube cutting and deburring tools to ensure a clean, square tube end before seating the compression ferrule. Do not overtighten the compression nut, as this can deform the ferrule and compromise the seal.
